PJSD07TM_R1_00001

Active

Panjit International Inc.

ESD PROTECTION DIODES

Search across all available documentation for this part.

Active

Panjit International Inc.

ESD PROTECTION DIODES

Technical Specifications

Parameters and characteristics for this part

Specification	PJSD07TM_R1_00001

Applications	General Purpose
Capacitance @ Frequency	30 pF
Current - Peak Pulse (10/1000µs)	4 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

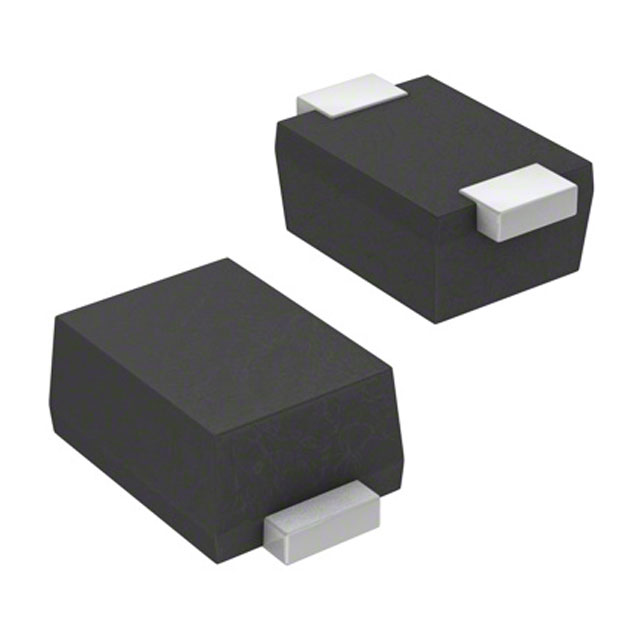

Package / Case	SOD-923
Power - Peak Pulse	40 W
Power Line Protection	False
Supplier Device Package	SOD-923
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	7.5 V
Voltage - Clamping (Max) @ Ipp [Max]	15 V
Voltage - Reverse Standoff (Typ) [Max]	7 V

Part	Power - Peak Pulse	Voltage - Reverse Standoff (Typ) [Max]	Voltage - Breakdown (Min) [Min]	Capacitance @ Frequency	Unidirectional Channels [custom]	Current - Peak Pulse (10/1000µs)	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Package / Case	Supplier Device Package	Voltage - Clamping (Max) @ Ipp [Max]	Qualification	Grade
Panjit International Inc. PJSD07TS_R1_00001	120 W	7 V	7.5 V	85 pF	1	8.8 A	General Purpose	Surface Mount	150 °C	-50 °C	Zener	SC-79 SOD-523	SOD-523	22.7 V
Panjit International Inc. PJSD07TM_R1_00001	40 W	7 V	7.5 V	30 pF	1	4 A	General Purpose	Surface Mount	150 °C	-55 °C	Zener	SOD-923	SOD-923	15 V
Panjit International Inc. PJSD07TS-AU_R1_000A1	120 W	7 V	7.5 V	85 pF	1	8.8 A		Surface Mount	150 °C	-50 °C	Zener	SC-79 SOD-523	SOD-523	22.7 V	AEC-Q101	Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15V Clamp 4A Ipp Tvs Diode Surface Mount SOD-923
