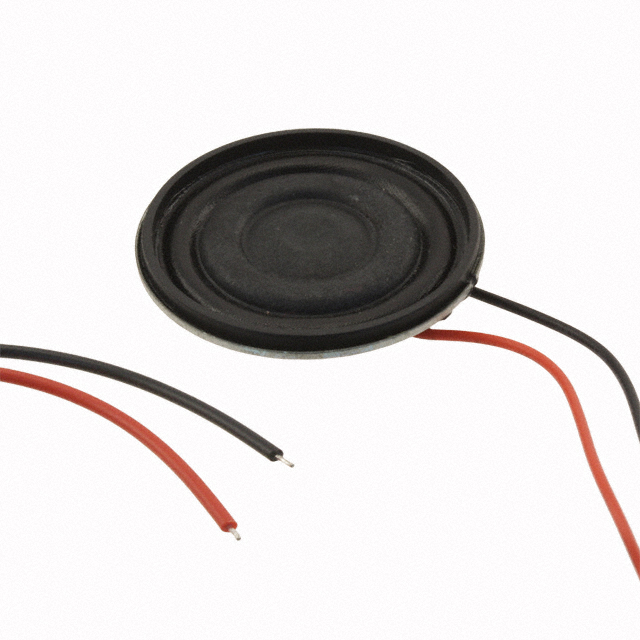

CLS0361-L152
ActiveCUI Devices
SPEAKER 8OHM 2W TOP PORT 88DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLS0361-L152
ActiveCUI Devices
SPEAKER 8OHM 2W TOP PORT 88DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CLS0361-L152 |
|---|---|
| Efficiency - dBA | 88 dBA |
| Efficiency - Testing | 1 mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 450 Hz |
| Height - Seated (Max) [Max] | 6.3 mm |
| Height - Seated (Max) [Max] | 0.248 in |
| Impedance | 8 Ohms |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max [Max] | 3 W |
| Power - Rated | 2 W |
| Shape | Round |
| Size / Dimension [diameter] | 1.417 in |
| Size / Dimension [diameter] | 36 mm |
| Technology | Magnetic |
| Termination | Wire Leads |
| Type | Low Profile |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.49 | |
| 1 | $ 5.49 | |||
| 10 | $ 4.53 | |||
| 10 | $ 4.53 | |||
| 25 | $ 4.18 | |||
| 25 | $ 4.18 | |||
| 40 | $ 3.92 | |||
| 40 | $ 3.92 | |||
| 50 | $ 3.75 | |||
| 50 | $ 3.75 | |||
| 100 | $ 3.68 | |||
| 100 | $ 3.68 | |||
| 300 | $ 3.46 | |||
| 300 | $ 3.46 | |||
| 500 | $ 3.25 | |||
| 500 | $ 3.25 | |||
Description
General part information
CLS0361 Series
8 Ohms Low Profile Speaker 2 W 360 Hz ~ 20 kHz Top Round
