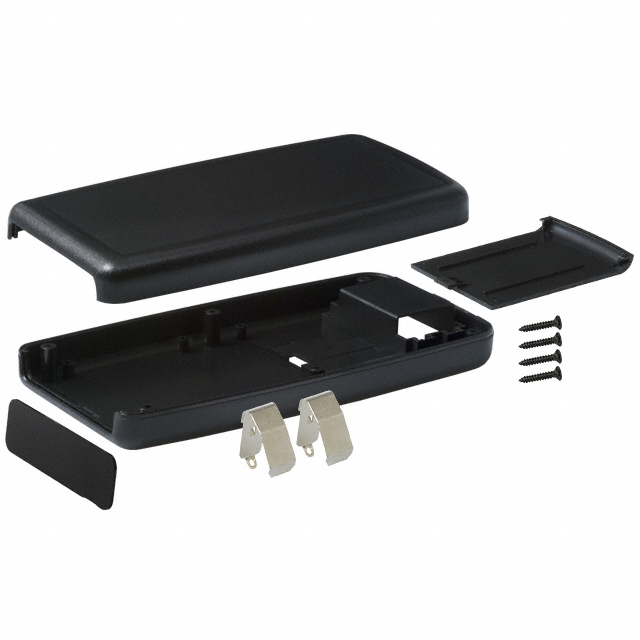

H75 9V,BK

Active

Serpac

BOX ABS BLACK 7.2"L X 3.65"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 7.2"L X 3.65"W

Technical Specifications

Parameters and characteristics for this part

Specification	H75 9V,BK

Area (L x W) [custom]	170 cm²
Area (L x W) [custom]	26.3 in²
Color	Black
Container Type	Box
Features	Battery Compartment, PCB Supports
Features	9 V
Height [diameter]	1.26 in
Height [diameter]	32 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	7.2 in
Size / Dimension [x]	182.88 mm
Size / Dimension [y]	92.71 mm
Size / Dimension [y]	3.65 in
Thickness	2.03 mm
Thickness	0.08 "
Weight	102.97 g
Weight	0.227 lb

Part	Thickness	Thickness	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Area (L x W) [custom]	Area (L x W) [custom]	Features	Features	Weight	Weight	Height [diameter]	Height [diameter]	Container Type	Ratings	Material	Color	Material Flammability Rating
Serpac H75 9V,BK	2.03 mm	0.08 "	7.2 in	92.71 mm	3.65 in	182.88 mm	170 cm²	26.3 in²	Battery Compartment PCB Supports	9 V	102.97 g	0.227 lb	1.26 in	32 mm	Box	IP40	Plastic ABS	Black	UL94 HB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Hand Held, Split Sides and End Panel(s) 7.200" L x 3.650" W (182.88mm x 92.71mm) X 1.260" (32.00mm)
