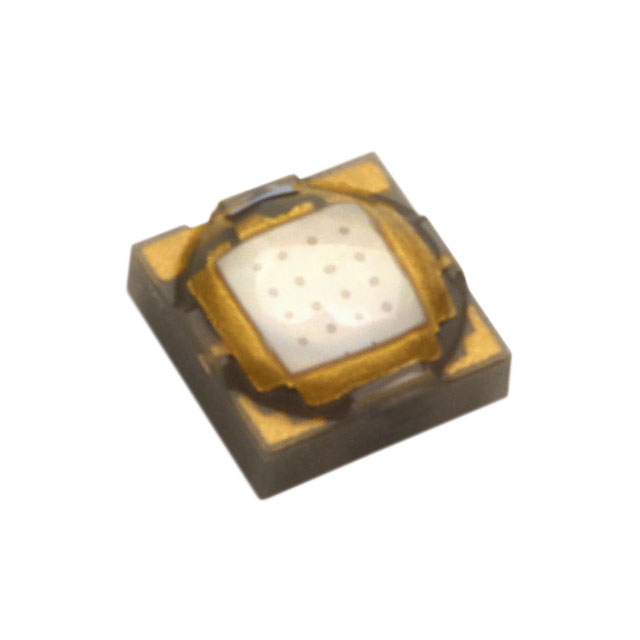

L1C1-GRN1000000000

Active

Lumileds

LED UNI-COLOR GREEN 97LM CHIP LED 3-PIN SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet LUXEON C Color Line Assembly, Handling +1

L1C1-GRN1000000000

Active

Lumileds

LED UNI-COLOR GREEN 97LM CHIP LED 3-PIN SMD T/R

Deep-Dive with AI

DocumentsDatasheet LUXEON C Color Line Assembly, Handling +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L1C1-GRN1000000000

Color	Green
Current - Max [Max]	1.05 A
Current - Test	350 mA
Height - Seated (Max) [Max]	1.5 mm
Height - Seated (Max) [Max] [z]	0.059 "
Lumens/Watt @ Current - Test	108 lm/W
Luminous Flux @ Current/Temperature	115 lm
Mounting Type	Surface Mount
Package / Case	0707, 1919 Metric
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	2 mm
Size / Dimension [y]	0.079 in
Supplier Device Package	SMD
Temperature - Test	85 °C
Thermal Resistance of Package [custom]	3.5 °C/W
Viewing Angle	170 °
Voltage - Forward (Vf) (Typ)	3.05 V
Wavelength	530 nm
Wavelength [Max]	540 nm
Wavelength [Min]	520 nm

L1C1 Series

Part	Current - Test	Package / Case	Lumens/Watt @ Current - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Thermal Resistance of Package [diameter]	Current - Max [Max]	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Supplier Device Package	CCT (K)	Voltage - Forward (Vf) (Typ)	Mounting Type	Flux @ 85°C, Current - Test	Color	Package / Case	Temperature - Test	Luminous Flux @ Current/Temperature	Wavelength [Min]	Wavelength [Max]	Thermal Resistance of Package [custom]	Wavelength	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]
Lumileds L1C1-4080000000000	350 mA	0707 1919 Metric	121 lm/W	1.5 mm	0.059 "	2.8 °C/W	1.225 A	80	2 mm	2 mm	0.079 in	0.079 in	150 °	SMD	4000 K	2.75 V	Surface Mount	116 lm	Neutral White
Lumileds L1C1-3090000000000	350 mA		89 lm/W	1.5 mm	0.059 "	2.8 °C/W	1.225 A	90	2 mm	2 mm	0.079 in	0.079 in	150 °			2.75 V	Surface Mount	86 lm	Warm White	3-SMD No Lead
Lumileds L1C1-RYL1000000000	350 mA	0707 1919 Metric		1.5 mm	0.059 "	2.8 °C/W	1.05 A		2 mm	2 mm	0.079 in	0.079 in	165 °	SMD		2.75 V	Surface Mount		Blue		85 °C	506 mW	440 nm	460 nm
Lumileds L1C1-GRN1000000000	350 mA	0707 1919 Metric	108 lm/W	1.5 mm	0.059 "		1.05 A		2 mm	2 mm	0.079 in	0.079 in	170 °	SMD		3.05 V	Surface Mount		Green		85 °C	115 lm	520 nm	540 nm	3.5 °C/W	530 nm
Lumileds L1C1-3580000000000	350 mA		112 lm/W	1.5 mm	0.059 "	2.8 °C/W	1.225 A	80	2 mm	2 mm	0.079 in	0.079 in	150 °		3500 K	2.75 V	Surface Mount	108 lm	Warm White	3-SMD No Lead
Lumileds L1C1-2790000000000	350 mA		85 lm/W	1.5 mm	0.059 "	2.8 °C/W	1.225 A	90	2 mm	2 mm	0.079 in	0.079 in	150 °		2700 K	2.75 V	Surface Mount	82 lm	Warm White	3-SMD No Lead
Lumileds L1C1-LME1000000000	350 mA	0707 1919 Metric	152 lm/W	1.5 mm	0.059 "	2.8 °C/W	1.225 A		2 mm	2 mm	0.079 in	0.079 in	150 °	SMD		2.75 V	Surface Mount		Green		85 °C	146 lm					140 lm	152 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.46
		10	$ 1.78
		100	$ 1.37
		500	$ 1.19
	Digi-Reel®	1	$ 2.46
		10	$ 1.78
		100	$ 1.37
		500	$ 1.19
	Tape & Reel (TR)	1000	$ 1.13
		2000	$ 1.08
		3000	$ 1.06
		5000	$ 1.03
		7000	$ 1.01
		10000	$ 0.99

Description

General part information

L1C1 Series

The LUXEON C Color Line is an optically advanced portfolio of Color and White LEDs. Designed for flawless color mixing, LUXEON C Color Line has one focal length for all colors, which provides consistent radiation patterns from secondary optics and maximizes optical efficiency. With low dome design, it keeps effective source size small while still improving light extraction. Designed for smooth color mixing and maximum punch, LUXEON C Color Line is the optimal LED solution for architecture, emergency vehicle lighting and horticulture lighting applications.One focal length allows flawless color mixing, maximum optical efficiency and removes halos Low dome design eliminates trade-offs between flux and source size Hot tested-removes guesswork for designers Industry’s lowest thermal resistance means greater light output and lower heatsink costs Small symmetrical 2x2mm² package enables dense packing and limits the impact of rotation during reflow

Documents

Technical documentation and resources

Datasheet

LUXEON C Color Line Assembly, Handling

Datasheet

LUXEON C Color Line Brief

Datasheet
