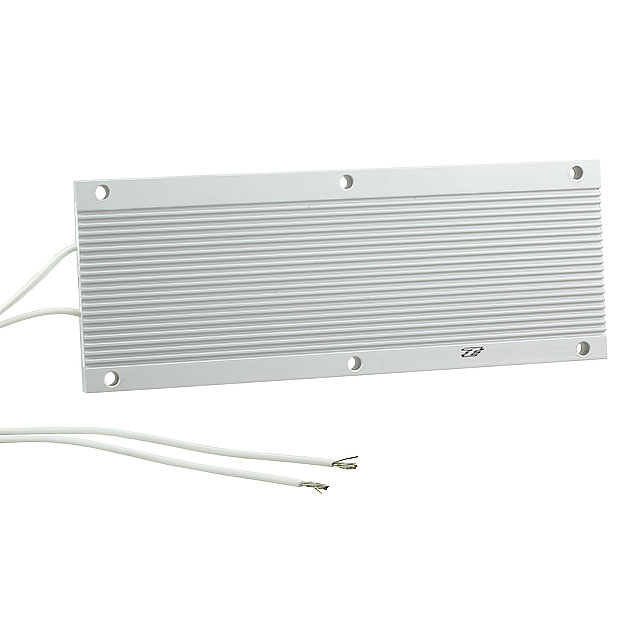

TJT250150RJ

Active

TE Connectivity Passive Product

RES CHAS MNT 150 OHM 5% 250W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TJT250150RJ

Active

TE Connectivity Passive Product

RES CHAS MNT 150 OHM 5% 250W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TJT250150RJ

Coating, Housing Type	Aluminum
Composition	Wirewound
Height - Seated (Max) [Max]	0.394 in
Height - Seated (Max) [Max]	10 mm
Lead Style	Wire Leads
Mounting Feature	Screw Holes
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-25 °C
Package / Case	Rectangular Case
Power (Watts)	250 W
Resistance	150 Ohms
Size / Dimension [x]	7.087 "
Size / Dimension [x]	180 mm
Size / Dimension [y]	3.15 in
Size / Dimension [y]	80 mm
Temperature Coefficient	260 ppm/°C
Tolerance	5 %

TJT250 Series

Part	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Resistance	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Lead Style	Coating, Housing Type	Power (Watts)	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Composition	Mounting Feature
TE Connectivity Passive Product TJT25033RJ	260 ppm/°C	0.394 in	10 mm	33 Ohms	Rectangular Case	3.15 in	80 mm	7.087 "	180 mm	Wire Leads	Aluminum	250 W	5 %	-25 °C	250 °C	Wirewound	Screw Holes
TE Connectivity Passive Product TJT25010RJ	260 ppm/°C	0.394 in	10 mm	10 Ohms	Rectangular Case	3.15 in	80 mm	7.087 "	180 mm	Wire Leads	Aluminum	250 W	5 %	-25 °C	250 °C	Wirewound	Screw Holes
TE Connectivity Passive Product TJT2501K5J	260 ppm/°C	0.394 in	10 mm	1500 Ohms	Rectangular Case	3.15 in	80 mm	7.087 "	180 mm	Wire Leads	Aluminum	250 W	5 %	-25 °C	250 °C	Wirewound	Screw Holes
TE Connectivity Passive Product TJT2503R3J	260 ppm/°C	0.394 in	10 mm	3.3 Ohms	Rectangular Case	3.15 in	80 mm	7.087 "	180 mm	Wire Leads	Aluminum	250 W	5 %	-25 °C	250 °C	Wirewound	Screw Holes
TE Connectivity Passive Product TJT2502R2J	260 ppm/°C	0.394 in	10 mm	2.2 Ohms	Rectangular Case	3.15 in	80 mm	7.087 "	180 mm	Wire Leads	Aluminum	250 W	5 %	-25 °C	250 °C	Wirewound	Screw Holes
TE Connectivity Passive Product TJT250470RJ	260 ppm/°C	0.394 in	10 mm	470 Ohms	Rectangular Case	3.15 in	80 mm	7.087 "	180 mm	Wire Leads	Aluminum	250 W	5 %	-25 °C	250 °C	Wirewound	Screw Holes
TE Connectivity Passive Product TJT25022RJ	260 ppm/°C	0.394 in	10 mm	22 Ohms	Rectangular Case	3.15 in	80 mm	7.087 "	180 mm	Wire Leads	Aluminum	250 W	5 %	-25 °C	250 °C	Wirewound	Screw Holes
TE Connectivity Passive Product TJT25068RJ	260 ppm/°C	0.394 in	10 mm	68 Ohms	Rectangular Case	3.15 in	80 mm	7.087 "	180 mm	Wire Leads	Aluminum	250 W	5 %	-25 °C	250 °C	Wirewound	Screw Holes
TE Connectivity Passive Product TJT250150RJ	260 ppm/°C	0.394 in	10 mm	150 Ohms	Rectangular Case	3.15 in	80 mm	7.087 "	180 mm	Wire Leads	Aluminum	250 W	5 %	-25 °C	250 °C	Wirewound	Screw Holes
TE Connectivity Passive Product TJT250100RJ	260 ppm/°C	0.394 in	10 mm	100 Ohms	Rectangular Case	3.15 in	80 mm	7.087 "	180 mm	Wire Leads	Aluminum	250 W	5 %	-25 °C	250 °C	Wirewound	Screw Holes

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51.76
		10	$ 43.48
		30	$ 42.15
		50	$ 39.93
		100	$ 36.60

Description

General part information

TJT250 Series

150 Ohms ±5% 250W Wirewound Chassis Mount Resistor
