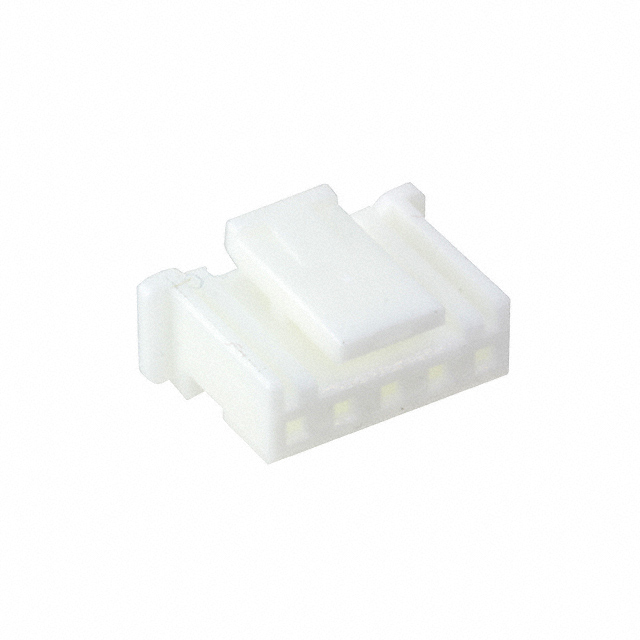

2CH-H-05

Active

Adam Tech

CONN RCPT HSG 5POS 2.00MM

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT HSG 5POS 2.00MM

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Number of Positions	Fastening Type	Insulation Material	Color	Mounting Type	Connector Type	Contact Type	Number of Rows	Note	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]
Adam Tech 2CH-H-06	0.079 in	2 mm	6	Friction Lock	Polyamide (PA66) Nylon 6/6	White	Free Hanging (In-Line)	Receptacle	Female Socket	1	Contacts Not Included	Crimp	-25 °C	85 °C
Adam Tech 2CH-H-05	0.079 in	2 mm		Friction Lock	Polyamide (PA66) Nylon 6/6	White	Free Hanging (In-Line)	Receptacle	Female Socket	1	Contacts Not Included	Crimp	-25 °C	85 °C
Adam Tech 2CH-H-08	0.079 in	2 mm	8	Friction Lock	Polyamide (PA66) Nylon 6/6	White	Free Hanging (In-Line)	Receptacle	Female Socket	1	Contacts Not Included	Crimp	-25 °C	85 °C
Adam Tech 2CH-H-07	0.079 in	2 mm	7	Friction Lock	Polyamide (PA66) Nylon 6/6	White	Free Hanging (In-Line)	Receptacle	Female Socket	1	Contacts Not Included	Crimp	-25 °C	85 °C
