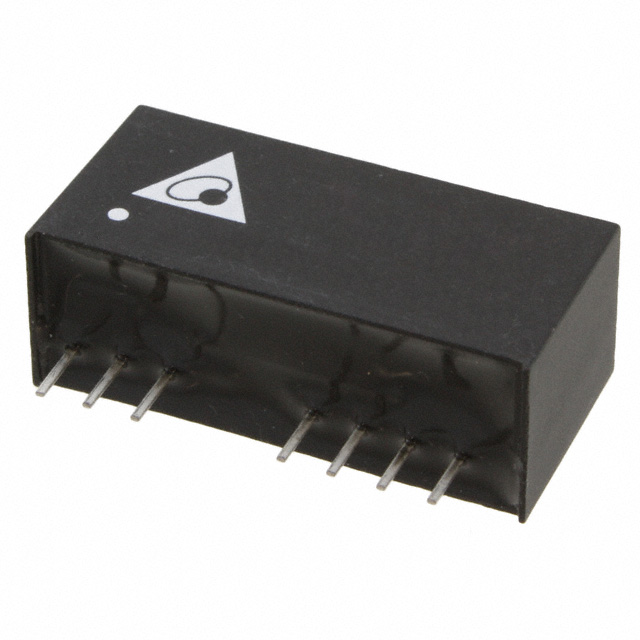

PH02D4812A
ObsoleteDelta Electronics
DC DC CONVERTER +/-12V 2W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PH02D4812A
ObsoleteDelta Electronics
DC DC CONVERTER +/-12V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PH02D4812A |
|---|---|
| Applications | Medical |
| Control Features | Active Low, Enable |
| Current - Output (Max) | 83 mA |
| Current - Output (Max) | 83 mA |
| Efficiency | 76 % |
| Features | UVLO, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 9-SIP Module, 7 Leads |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 1.02 in |
| Size / Dimension [x] | 25.9 mm |
| Size / Dimension [y] | 0.36 in |
| Size / Dimension [y] | 9.1 mm |
| Size / Dimension [z] | 0.49 in |
| Size / Dimension [z] | 12.4 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PH02D Series
Isolated Module DC DC Converter 2 Output 12V -12V 83mA, 83mA 18V - 75V Input
