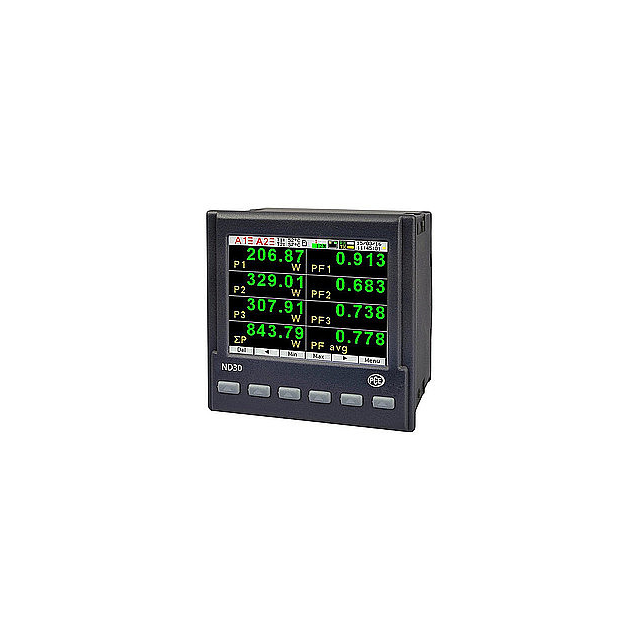

PCE-ND30

Active

PCE Instruments

THE POWER INDICATOR PCE-ND30 CAN

Search across all available documentation for this part.

Active

PCE Instruments

THE POWER INDICATOR PCE-ND30 CAN

Technical Specifications

Parameters and characteristics for this part

Specification	PCE-ND30

Display Type	LCD - Green Characters, Backlight
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Type	Current (3-Phase), Wattage, Voltage
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	92.5 mm
Panel Cutout Dimensions [y]	92.5 mm
Termination Style	Screw Terminal
Type	Energy Monitor

Part	Display Type	Termination Style	Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Measuring Type	Ingress Protection	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
PCE Instruments PCE-ND30	LCD - Green Characters Backlight	Screw Terminal	Energy Monitor	55 °C	-10 °C	Current (3-Phase) Voltage Wattage	IP65 - Dust Tight Water Resistant	92.5 mm	92.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 510.00

General part information

Energy Monitor LCD - Green Characters, Backlight Display Panel Mount
