OSTTC033162

Active

On Shore Technology Inc.

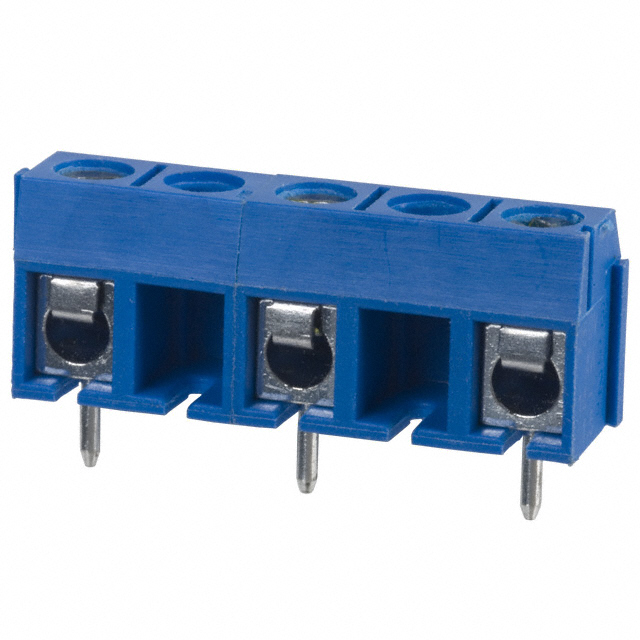

TERM BLK 3P SIDE ENT 10.16MM PCB

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLK 3P SIDE ENT 10.16MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	OSTTC033162

Clamp Material - Plating	Stainless, Steel
Contact Material - Plating [custom]	Brass
Current	15 A
Features	Interlocking (Side)
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-33 °C
Pitch [x]	10.16 mm
Pitch [x]	0.4 in
Positions Per Level	3
Screw Material - Plating	Steel, Galvanized - Chromate Plated
Screw Thread	M2.6
Torque - Screw	0.4 Nm
Torque - Screw	3.5 Lb-In
Voltage	300 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG
Wire Termination	Screw - Leaf Spring, Wire Guard

Part	Screw Thread	Current	Torque - Screw	Torque - Screw	Contact Material - Plating [custom]	Screw Material - Plating	Number of Levels	Features	Pitch [x]	Pitch [x]	Wire Gauge [Min]	Wire Gauge [Max]	Wire Termination	Mounting Type	Voltage	Clamp Material - Plating	Positions Per Level	Mating Orientation	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]
On Shore Technology Inc. OSTTC033162	M2.6	15 A	0.4 Nm	3.5 Lb-In	Brass	Steel Galvanized - Chromate Plated	1	Interlocking (Side)	10.16 mm	0.4 in	14 AWG	22 AWG	Screw - Leaf Spring Wire Guard	Through Hole	300 V	Stainless Steel	3	Horizontal with Board	Polyamide (PA) Nylon	-33 °C	120 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	150	$ 0.80

General part information

3 Position Wire to Board Terminal Block Horizontal with Board 0.400" (10.16mm) Through Hole
