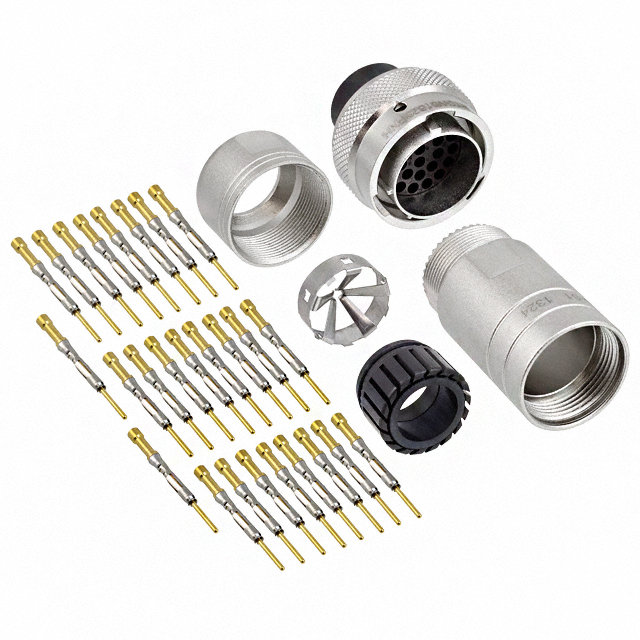

RT0W61626PNH-K

Active

Amphenol Sine Systems Corp

CONN PLUG MALE 26POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN PLUG MALE 26POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	RT0W61626PNH-K

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert [Max]	26
Shell Size - Insert [Min]	16
Termination	Crimp
Voltage Rating	150 VAC

Part	Ingress Protection	Contact Finish - Mating	Shell Finish	Termination	Orientation	Fastening Type	Shell Material	Current Rating (Amps)	Color	Connector Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Number of Positions	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish Thickness - Mating	Mounting Type
Amphenol Sine Systems Corp RT0W61626SNH-K	IP67 - Dust Tight Waterproof	Gold	Nickel	Crimp	N	Bayonet Lock	Zinc Die Cast	7.5 A	Silver	Female Sockets Plug	16	26	26	Metal	-40 °C	105 ░C	150 VAC	Flash	Free Hanging (In-Line)
Amphenol Sine Systems Corp RT0W61626PNH-K	IP67 - Dust Tight Waterproof	Gold	Nickel	Crimp	N	Bayonet Lock	Zinc Die Cast	7.5 A	Silver	Male Pins Plug	16	26	26	Metal	-40 °C	105 ░C	150 VAC	Flash	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 49.85

General part information

26 Position Circular Connector Plug, Male Pins Crimp
