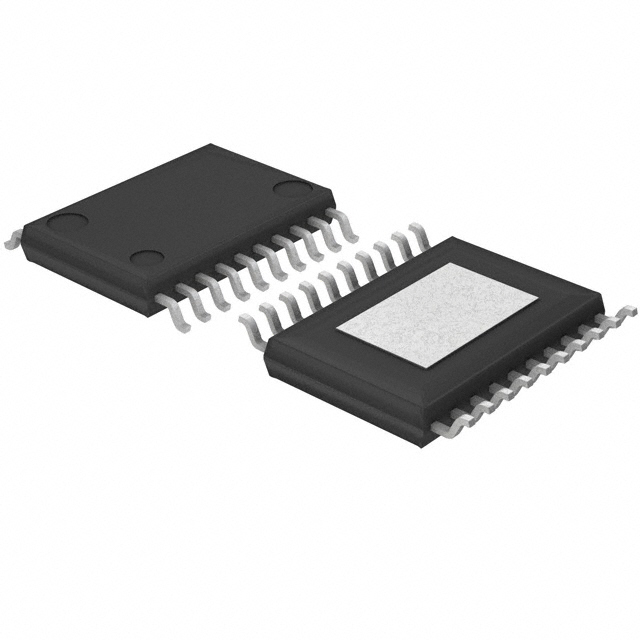

MPQ7731DF-LF

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC AMP CLASS D MONO 30W 20TSSOPF

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC AMP CLASS D MONO 30W 20TSSOPF

Technical Specifications

Parameters and characteristics for this part

Specification	MPQ7731DF-LF

Features	Depop, Thermal Protection, Mute, Short-Circuit
Max Output Power x Channels @ Load	30 W
Max Output Power x Channels @ Load [custom]	1
Max Output Power x Channels @ Load [custom]	4 Ohm
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Type	1-Channel (Mono)
Package / Case [custom]	4.4 mm, 0.173 in
Package / Case [custom]	Exposed Pad
Package / Case [custom]	20-TSSOP
Supplier Device Package	20-TSSOPF-EP
Type	Class D
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	9.5 V

Part	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [custom]	Output Type	Supplier Device Package	Package / Case [custom]	Package / Case [custom]	Package / Case [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type	Features	Voltage - Supply [Min]	Voltage - Supply [Max]
MONOLITHIC POWER SYSTEMS (MPS) MPQ7731DF-LF-Z	1	30 W	4 Ohm	1-Channel (Mono)	20-TSSOPF-EP	0.173 in 4.4 mm	Exposed Pad	20-TSSOP	-40 °C	125 ¯C	Class D	Surface Mount	Depop Mute Short-Circuit Thermal Protection
MONOLITHIC POWER SYSTEMS (MPS) MPQ7731DF-LF	1	30 W	4 Ohm	1-Channel (Mono)	20-TSSOPF-EP	0.173 in 4.4 mm	Exposed Pad	20-TSSOP	-40 °C	125 ¯C	Class D	Surface Mount	Depop Mute Short-Circuit Thermal Protection	9.5 V	18 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Amplifier IC 1-Channel (Mono) Class D 20-TSSOPF-EP
