919-387P-51A

Active

Amphenol RF

CONN MCX PLUG R/A 50 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

919-387P-51A

Active

Amphenol RF

CONN MCX PLUG R/A 50 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	919-387P-51A

Body Finish	Nickel
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms

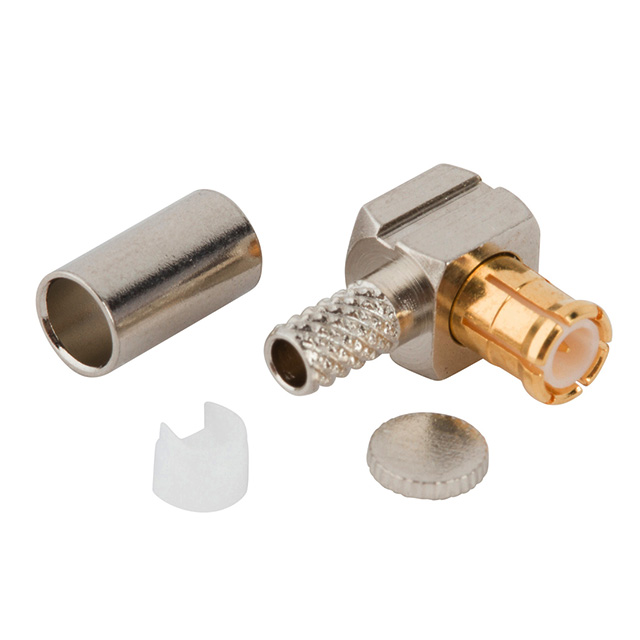

Includes	Ferrule, Insulator, Connector, End Cap
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

919-38 Series

Part	Impedance	Shield Termination	Fastening Type	Connector Style	Number of Ports	Mating Cycles	Frequency - Max [Max]	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Mounting Type	Housing Color	Center Contact Plating	Contact Termination	Cable Group	Includes	Body Finish	Center Contact Material	Dielectric Material
Amphenol RF 919-386P-51S	50 Ohms	Crimp	Snap-On	MCX	1	500	6000 MHz	Male Pin Plug	85 °C	-40 °C	Brass	Free Hanging (In-Line)	Silver	Gold	Crimp	188 188A 316 LMR-100 M17/119-RG174 RG-174	1 Connector 1 Contact 1 Ferrule	Nickel	Brass	Polytetrafluoroethylene (PTFE)
Amphenol RF 919-389P-51A	50 Ohms	Crimp	Snap-On	MCX	1	500	6000 MHz	Male Pin Plug	85 °C	-40 °C	Brass	Free Hanging (In-Line) Right Angle	Silver	Gold	Solder	178A 178B 196 196A M17/93-RG178 RG-178	Connector End Cap Ferrule Insulator	Nickel	Brass	Polyoxymethylene (POM) Acetal Polytetrafluoroethylene (PTFE)
Amphenol RF 919-383J-51A	50 Ohms	Solder	Snap-On	MCX	1	500	6000 MHz	Female Socket Receptacle	165 °C	-65 ░C	Brass	Through Hole Right Angle	Silver	Gold	Solder			Tin	Beryllium Copper	Polytetrafluoroethylene (PTFE)
Amphenol RF 919-384J-51PT	50 Ohms	Solder	Snap-On	MCX	1	500	6000 MHz	Female Socket Jack	165 °C	-65 ░C	Brass	Surface Mount	Gold	Gold	Solder			Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)
Amphenol RF 919-385J-51S	50 Ohms	Solder	Snap-On	MCX	1	500	6000 MHz	Female Socket Receptacle	165 °C	-65 ░C	Brass	Board Edge End Launch	Gold	Gold	Solder			Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)
Amphenol RF 919-387P-51A	50 Ohms	Crimp	Snap-On	MCX	1	500	6000 MHz	Male Pin Plug	85 °C	-40 °C	Brass	Free Hanging (In-Line) Right Angle	Silver	Gold	Crimp	188 188A 316 LMR-100 M17/119-RG174 RG-174	Connector End Cap Ferrule Insulator	Nickel	Brass	Polyoxymethylene (POM) Acetal Polytetrafluoroethylene (PTFE)
Amphenol RF 919-388P-51S	50 Ohms	Crimp	Snap-On	MCX	1	500	6000 MHz	Male Pin Plug	155 °C	-55 °C	Brass	Free Hanging (In-Line)	Silver	Gold	Solder	178A 178B 196 196A M17/93-RG178 RG-178	1 Connector 1 Contact 1 Ferrule 1 Spacer	Nickel	Brass	Polytetrafluoroethylene (PTFE)
Amphenol RF 919-384J-51P	50 Ohms	Solder	Snap-On	MCX	1	500	6000 MHz	Female Socket Receptacle	165 °C	-65 ░C	Brass	Surface Mount	Gold	Gold	Solder			Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)
Amphenol RF 919-382J-51P	50 Ohms	Solder	Snap-On	MCX	1	500	6000 MHz	Female Socket Receptacle	165 °C	-65 ░C	Brass	Through Hole	Gold	Gold	Solder			Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 3.97
		10	$ 3.61
		25	$ 3.42
		50	$ 3.34
		100	$ 3.18
		300	$ 2.78
		500	$ 2.70
		1000	$ 2.31
		2500	$ 2.15

Description

General part information

919-38 Series

MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
