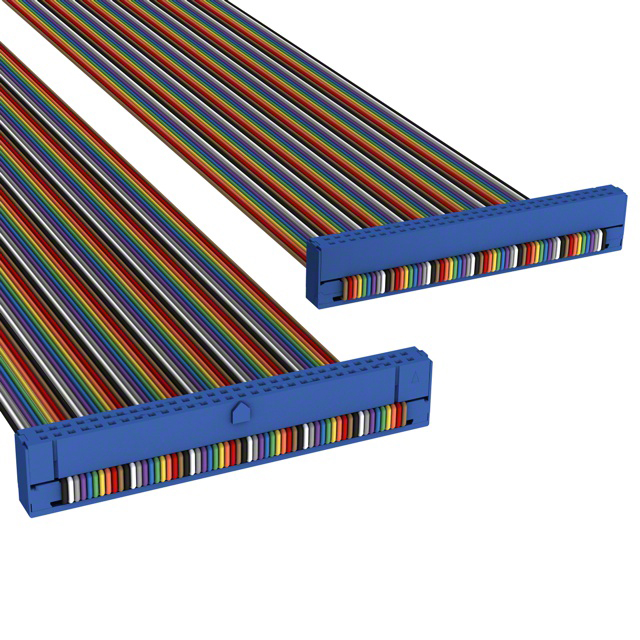

C3DDG-6006M

Active

CW Industries

IDC CABLE - CKR60G/AE60M/CKR60G

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKR60G/AE60M/CKR60G

Technical Specifications

Parameters and characteristics for this part

Specification	C3DDG-6006M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key, Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	60
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Length [x]	Length [x]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Contact Finish	Features	Number of Rows	Cable Termination	Pitch - Cable	Pitch - Cable	Color	Connector Type	Shielding	Length	Length	Length
CW Industries C3DDG-6036M	3 ft	914.4 mm	60	10 Áin	0.25 Ám	0.1 in	2.54 mm	Gold	Polarizing Key Strain Relief	2	IDC	0.05 "	1.27 mm	Multiple Ribbon	Socket to Socket	Unshielded
CW Industries C3DDG-6006G			60	10 Áin	0.25 Ám	0.1 in	2.54 mm	Gold	Polarizing Key Strain Relief	2	IDC	0.05 "	1.27 mm		Socket to Socket	Unshielded	152.4 mm	6 "	0.5 '
CW Industries C3DDG-6006M			60	10 Áin	0.25 Ám	0.1 in	2.54 mm	Gold	Polarizing Key Strain Relief	2	IDC	0.05 "	1.27 mm	Multiple Ribbon	Socket to Socket	Unshielded	152.4 mm	6 "	0.5 '
CW Industries C3DDG-6018M	1.5 ft	457.2 mm	60	10 Áin	0.25 Ám	0.1 in	2.54 mm	Gold	Polarizing Key Strain Relief	2	IDC	0.05 "	1.27 mm	Multiple Ribbon	Socket to Socket	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
