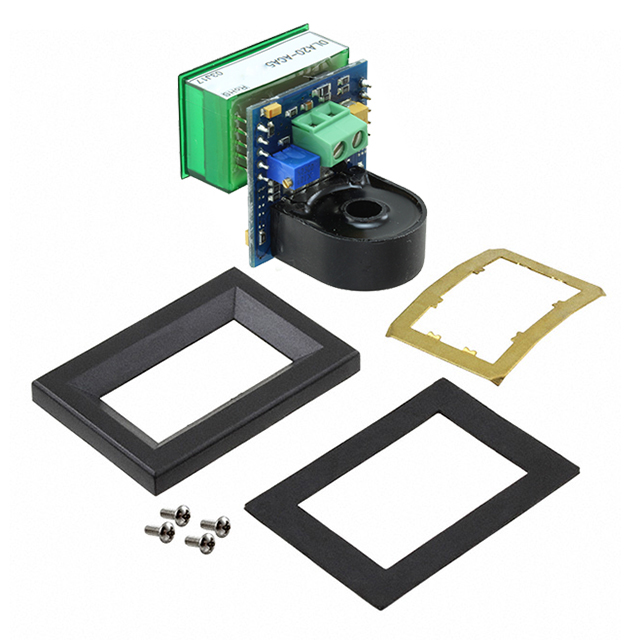

DLA20-ACA-G-2
ActiveC-TON Industries
AMMETER 0-19.99A LED PANEL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DLA20-ACA-G-2
ActiveC-TON Industries
AMMETER 0-19.99A LED PANEL MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DLA20-ACA-G-2 |
|---|---|
| Display Characters - Height | 9.4 mm |
| Display Characters - Height | 0.37 in |
| Display Type | LED - Green Characters |
| Measuring Range [Max] | 19.99 A |
| Measuring Range [Min] | 0 |
| Measuring Type | Current |
| Mounting Type | Panel Mount - Bezel |
| Number of Characters Per Row | 3.5 |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Panel Cutout Dimensions [x] | 33.93 mm |
| Panel Cutout Dimensions [y] | 21.29 mm |
| Termination Style | Screw Terminal |
| Type | Ammeter |
| Voltage - Supply [Max] | 264 VAC |
| Voltage - Supply [Min] | 85 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 91.30 | |
| 10 | $ 79.38 | |||
| 25 | $ 75.00 | |||
| 50 | $ 71.82 | |||
| 100 | $ 68.77 | |||
Description
General part information
DLA20-ACA Series
Ammeter LED - Green Characters Display Panel Mount - Bezel
