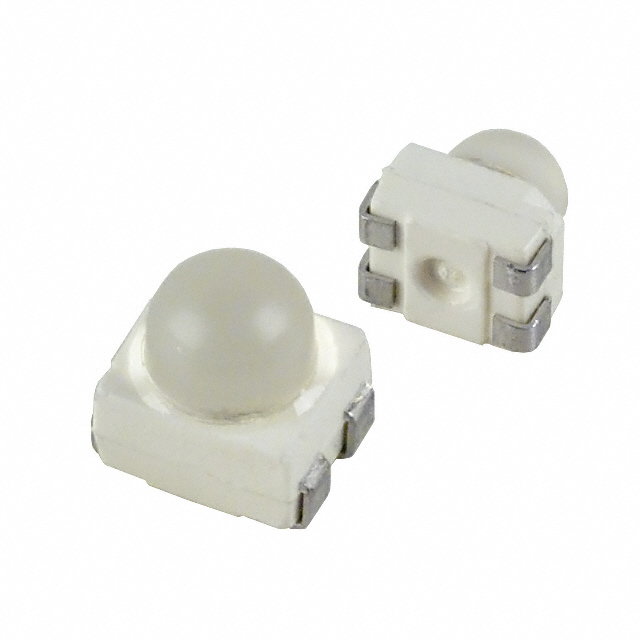

LY E63B-CBEA-26-1-50-R33-Z
Obsoleteams-OSRAM USA INC.
LED YELLOW CLEAR 4PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LY E63B-CBEA-26-1-50-R33-Z
Obsoleteams-OSRAM USA INC.
LED YELLOW CLEAR 4PLCC SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LY E63B-CBEA-26-1-50-R33-Z |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 50 mA |
| Height (Max) [Max] [z] | 3.8 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.6 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Mounting Type | Surface Mount |
| Package / Case | 4-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 4-PLCC |
| Viewing Angle | 30 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Dominant | 587 nm |
| Wavelength - Peak | 594 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.57 | |
| 10 | $ 0.34 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| Digi-Reel® | 1 | $ 0.57 | ||
| 10 | $ 0.34 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| Tape & Reel (TR) | 6000 | $ 0.13 | ||
| 10000 | $ 0.12 | |||
| 50000 | $ 0.11 | |||
Description
General part information
LYE63B Series
Yellow 587nm LED Indication - Discrete 2.2V 4-PLCC
