71-02-7244-1000

Active

Parker Chomerics

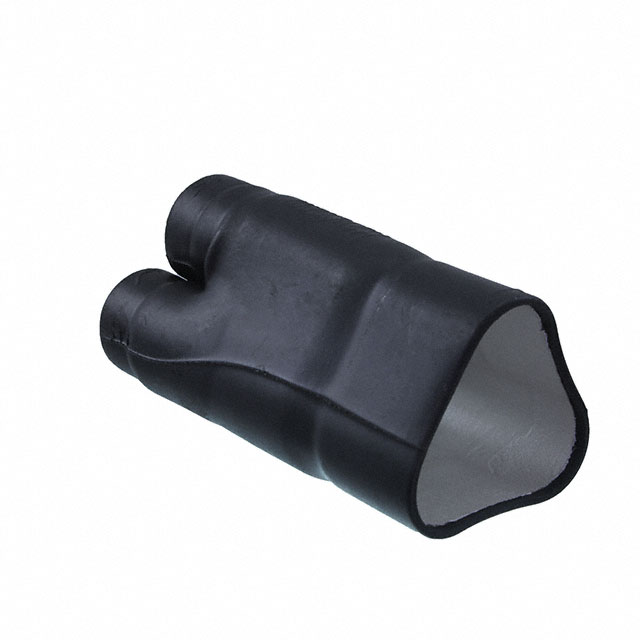

EMI HEATSHRINK BOOT BREAKOUT 3:1

Search across all available documentation for this part.

Active

Parker Chomerics

EMI HEATSHRINK BOOT BREAKOUT 3:1

Technical Specifications

Parameters and characteristics for this part

Specification	71-02-7244-1000

Color	Black
Large Diameter Recovered [diameter]	0.52 in
Large Diameter Recovered [diameter]	13.21 mm
Large Diameter Supplied [diameter]	1.06 in
Large Diameter Supplied [diameter]	26.92 mm
Large Recovered Length	42.93 mm
Large Recovered Length	1.69 in
Material	Polyolefin (PO)
Small Diameter Recovered [diameter]	0.27 "
Small Diameter Recovered [diameter]	6.86 mm
Small Diameter Supplied [diameter]	0.52 in
Small Diameter Supplied [diameter]	13.21 mm
Small Recovered Length	50.29 mm
Small Recovered Length [x]	1.98 in
Total Length Recovered	93.22 mm
Total Length Recovered	3.67 in
Type	Boot, Transition - Breakout, 3:1

Part	Large Recovered Length	Large Recovered Length	Small Recovered Length	Small Recovered Length [x]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Material	Color	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Total Length Recovered	Total Length Recovered	Type
Parker Chomerics 71-02-7244-1000	42.93 mm	1.69 in	50.29 mm	1.98 in	1.06 in	26.92 mm	0.27 "	6.86 mm	0.52 in	13.21 mm	Polyolefin (PO)	Black	0.52 in	13.21 mm	93.22 mm	3.67 in	Boot Transition - Breakout 3:1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Shrink Boot, Transition - Breakout, 3:1 Black
