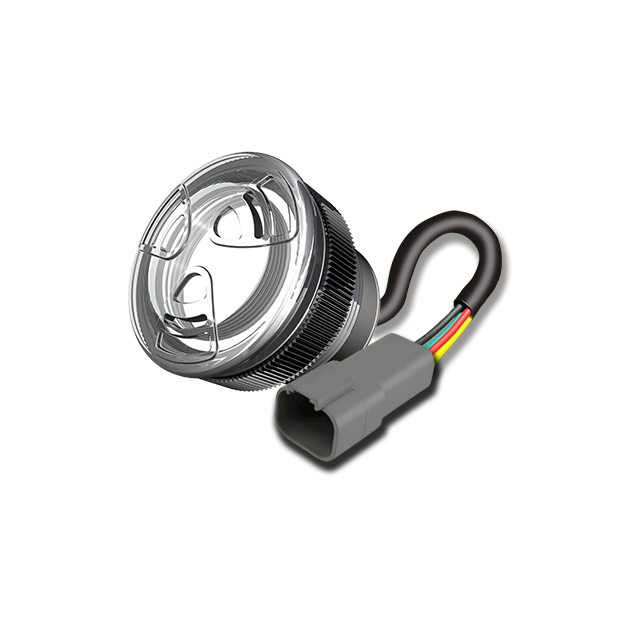

TCAN98W930H

Active

Floyd Bell Inc

BUZZER PIEZO 47.1MM PNL MNT

Search across all available documentation for this part.

Active

Floyd Bell Inc

BUZZER PIEZO 47.1MM PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	TCAN98W930H

Approval Agency	UL
Current - Supply [Max]	50 mA
Current - Supply [Min]	30 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	1.8 kHz
Height - Seated (Max) [Max]	38.5 mm
Height - Seated (Max) [Max]	1.516 in
Input Type	DC
Operating Mode	Multiple Tone
Port Location	Top
Size / Dimension [diameter]	1.854 in
Size / Dimension [diameter]	47.1 mm
Sound Pressure Level (SPL)	108 dB
Technology	Piezo
Termination	Wire Leads
Voltage Range [Max]	30 V
Voltage Range [Min]	9 V

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Range [Min]	Voltage Range [Max]	Port Location	Input Type	Technology	Current - Supply [Max]	Current - Supply [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Sound Pressure Level (SPL)	Operating Mode	Termination	Driver Circuitry	Approval Agency	Frequency
Floyd Bell Inc TCAN98W930H	1.854 in	47.1 mm	9 V	30 V	Top	DC	Piezo	50 mA	30 mA	38.5 mm	1.516 in	108 dB	Multiple Tone	Wire Leads	Indicator Internally Driven	UL	1.8 kHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 198.84

General part information

Buzzers Indicator, Internally Driven Piezo 30 ~ 50mA 1.8kHz 108dB @ 30V, 61cm Panel Mount Wire Leads

Technical documentation and resources

No documents available
