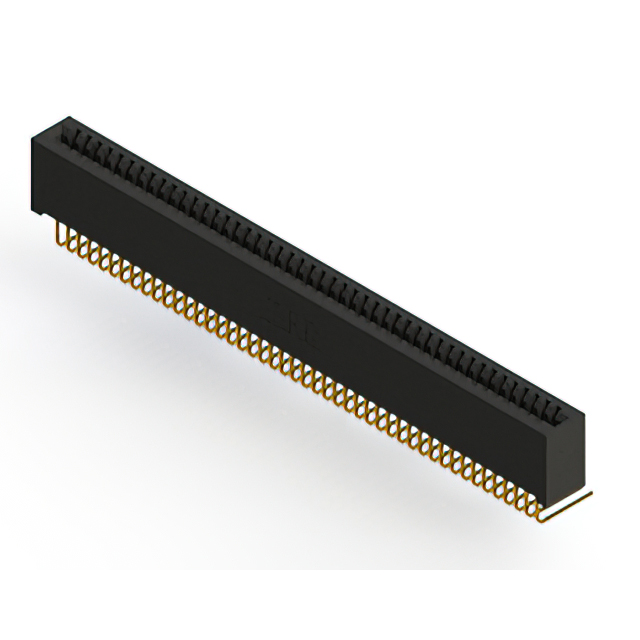

892-046-558-101

Active

EDAC Inc.

CONN EDGE SINGLE FML 46POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

892-046-558-101

Active

EDAC Inc.

CONN EDGE SINGLE FML 46POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-046-558-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	46
Number of Positions/Bay/Row [custom]	46
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

892-046 Series

...

Part	Number of Positions	Number of Rows	Read Out	Number of Positions/Bay/Row [custom]	Contact Finish	Mounting Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Card Type	Material - Insulation	Contact Material	Color	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Features	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination	Pitch [x]	Pitch [x]	Termination Rows
EDAC Inc. 892-046-555-212	46	2	Dual	23	Gold	Board Edge Straddle Mount	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Non Specified - Dual Edge	Polyphenylene Sulfide (PPS)	Copper Alloy	Black	Cantilever	10 Áin	0.25 Ám	Female	125 °C	-40 °C	Card Extender	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	2.54 mm	0.1 in	2
EDAC Inc. 892-046-541-108	46	1	Single	46	Gold	Through Hole		4-40 Flush Mount Threaded Insert Top Opening		Non Specified - Single Edge	Polyphenylene Sulfide (PPS)	Copper Alloy	Black	Cantilever	10 Áin	0.25 Ám	Female	125 °C	-40 °C		1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	2.54 mm	0.1 in	1
EDAC Inc. 892-046-558-101	46	1	Single	46	Gold	Through Hole Right Angle				Non Specified - Single Edge	Polyphenylene Sulfide (PPS)	Copper Alloy	Black	Cantilever	10 Áin	0.25 Ám	Female	125 °C	-40 °C		1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	2.54 mm	0.1 in	1
EDAC Inc. 892-046-520-202	46	2	Dual	23	Gold	Through Hole	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Non Specified - Dual Edge	Polyphenylene Sulfide (PPS)	Copper Alloy	Black	Cantilever	10 Áin	0.25 Ám	Female	125 °C	-40 °C		1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	2.54 mm	0.1 in	2
EDAC Inc. 892-046-544-104	46	1	Single	46	Gold	Through Hole	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Non Specified - Single Edge	Polyphenylene Sulfide (PPS)	Copper Alloy	Black	Cantilever	10 Áin	0.25 Ám	Female	125 °C	-40 °C		1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	2.54 mm	0.1 in	1
EDAC Inc. 892-046-555-208	46	2	Dual	23	Gold	Board Edge Straddle Mount		4-40 Flush Mount Threaded Insert Top Opening		Non Specified - Dual Edge	Polyphenylene Sulfide (PPS)	Copper Alloy	Black	Cantilever	10 Áin	0.25 Ám	Female	125 °C	-40 °C	Card Extender	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	2.54 mm	0.1 in	2
EDAC Inc. 892-046-520-207	46	2	Dual	23	Gold	Through Hole		Flush Mount M3 Threaded Insert Top Opening		Non Specified - Dual Edge	Polyphenylene Sulfide (PPS)	Copper Alloy	Black	Cantilever	10 Áin	0.25 Ám	Female	125 °C	-40 °C		1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	2.54 mm	0.1 in	2
EDAC Inc. 892-046-560-212	46	2	Dual	23	Gold	Board Edge Straddle Mount	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Non Specified - Dual Edge	Polyphenylene Sulfide (PPS)	Copper Alloy	Black	Cantilever	10 Áin	0.25 Ám	Female	125 °C	-40 °C	Card Extender	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	2.54 mm	0.1 in	2
EDAC Inc. 892-046-520-112	46	1	Single	46	Gold	Through Hole	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Non Specified - Single Edge	Polyphenylene Sulfide (PPS)	Copper Alloy	Black	Cantilever	10 Áin	0.25 Ám	Female	125 °C	-40 °C		1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	2.54 mm	0.1 in	1
EDAC Inc. 892-046-555-202	46	2	Dual	23	Gold	Board Edge Straddle Mount	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Non Specified - Dual Edge	Polyphenylene Sulfide (PPS)	Copper Alloy	Black	Cantilever	10 Áin	0.25 Ám	Female	125 °C	-40 °C	Card Extender	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	2.54 mm	0.1 in	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 147.15
Newark	Each	1	$ 176.59
		100	$ 142.36
		250	$ 130.77
		500	$ 119.45
		1000	$ 99.50

Description

General part information

892-046 Series

46 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
