H3DWH-3406M

Active

Assmann WSW Components

IDC CBL - HHKR34H/AE34M/HHPL34H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKR34H/AE34M/HHPL34H

Technical Specifications

Parameters and characteristics for this part

Specification	H3DWH-3406M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Polarizing Key (Plug), Polarizing Key, Flange, Strain Relief (Socket)
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	34
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Number of Positions	Cable Termination	Number of Rows	Connector Type	Features	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Shielding	Pitch - Connector	Pitch - Connector	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Color	Length	Length	Length
Assmann WSW Components H3DWH-3436G	34	IDC	2	Socket to Plug	Flange Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	0.05 "	1.27 mm	3 ft	914.4 mm	Unshielded	0.1 in	2.54 mm	Gold	15 µin	0.38 µm
Assmann WSW Components H3DWH-3436M	34	IDC	2	Socket to Plug	Flange Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	0.05 "	1.27 mm	3 ft	914.4 mm	Unshielded	0.1 in	2.54 mm	Gold	15 µin	0.38 µm	Multiple Ribbon
Assmann WSW Components H3DWH-3406M	34	IDC	2	Socket to Plug	Flange Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	0.05 "	1.27 mm			Unshielded	0.1 in	2.54 mm	Gold	15 µin	0.38 µm	Multiple Ribbon	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

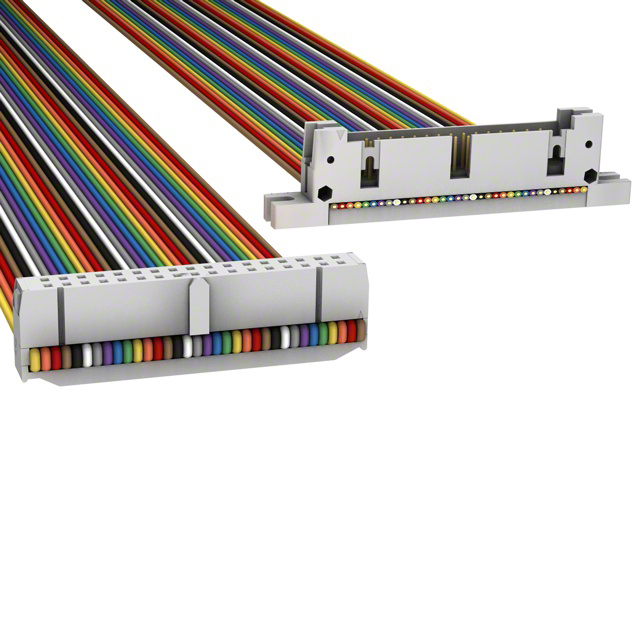

34 Position Cable Assembly Rectangular Socket to Plug 0.500' (152.40mm, 6.00")
