59S601-200L5

Active

Rosenberger

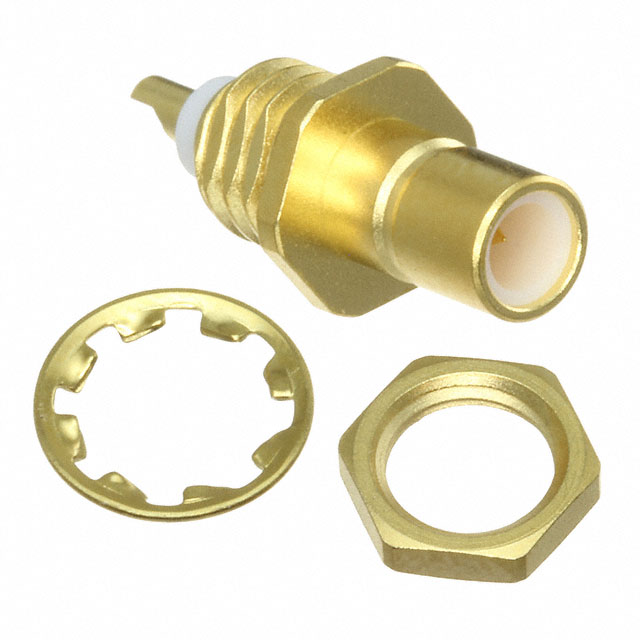

RF SMB CONNECTOR, 1 CONTACT(S), MALE, PANEL MOUNT, PLUG, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Rosenberger

RF SMB CONNECTOR, 1 CONTACT(S), MALE, PANEL MOUNT, PLUG, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	59S601-200L5

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Plug
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Extended Insulation
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Connector Style	Mating Cycles	Body Finish	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Termination	Voltage Rating	Impedance	Number of Ports	Center Contact Material	Mounting Feature	Includes	Features	Center Contact Plating	Shield Termination	Frequency - Max [Max]	Body Material	Housing Color	Connector Type	Adapter Series	Conversion Type	Style	Adapter Type	Center Gender	Convert To (Adapter End)
Rosenberger 59S601-200L5	SMB	500	Gold	Polytetrafluoroethylene (PTFE)	155 °C	-55 °C	Snap-On	Solder Cup	250 VDC	50 Ohms	1	Brass	Bulkhead - Front Side Nut	1 Connector 1 Lockwasher 1 Nut	Extended Insulation	Gold	Solder	4 GHz	Brass	Gold	Male Pin Plug
Rosenberger 59S601-S00L5		500	Gold	Polytetrafluoroethylene (PTFE)	155 °C	-55 °C	Snap-On			50 Ohms		Brass	Bulkhead	1 Connector 1 Lockwasher 1 Nut		Gold		4 GHz	Brass			SMB to SMB	Same Series	Straight	Plug to Plug	Male to Male	Male Pin SMB Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Male Pin 50 Ohms Panel Mount Solder Cup
