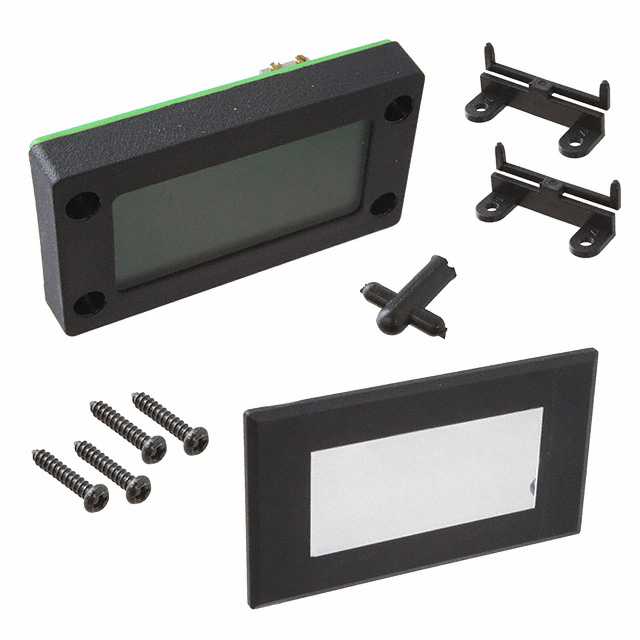

DTM 995B
ActiveLascar Electronics
PROCESS METER LCD PNL MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DTM 995B |
|---|---|
| Display Characters - Height [y] | 19 mm |
| Display Characters - Height [y] | 0.748 in |
| Measuring Range [Max] | 1300 °C |
| Measuring Range [Min] | -200 °C |
| Measuring Type | Thermocouple |
| Number of Characters Per Row | 3.5 |
| Panel Cutout Dimensions [x] | 72 mm |
| Panel Cutout Dimensions [y] | 40 mm |
| Termination Style | Screw Terminal |
| Type | Temperature Meter |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 88.99 | |
Description
General part information
DTM 995 Series
Temperature Meter LCD - Black Characters, Green Backlight Display Panel Mount
