XC912BC32CFUE8
ObsoleteFreescale Semiconductor - NXP
IC MCU 16BIT 32KB FLASH 80QFP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XC912BC32CFUE8
ObsoleteFreescale Semiconductor - NXP
IC MCU 16BIT 32KB FLASH 80QFP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XC912BC32CFUE8 |
|---|---|
| Connectivity | SPI, SCI |
| Core Processor | CPU12 |
| Core Size | 16-Bit |
| Data Converters [custom] | 8 |
| Data Converters [custom] | 10 |
| EEPROM Size [custom] | 8 |
| EEPROM Size [custom] | 768 |
| Mounting Type | Surface Mount |
| Number of I/O | 63 I/O |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | External |

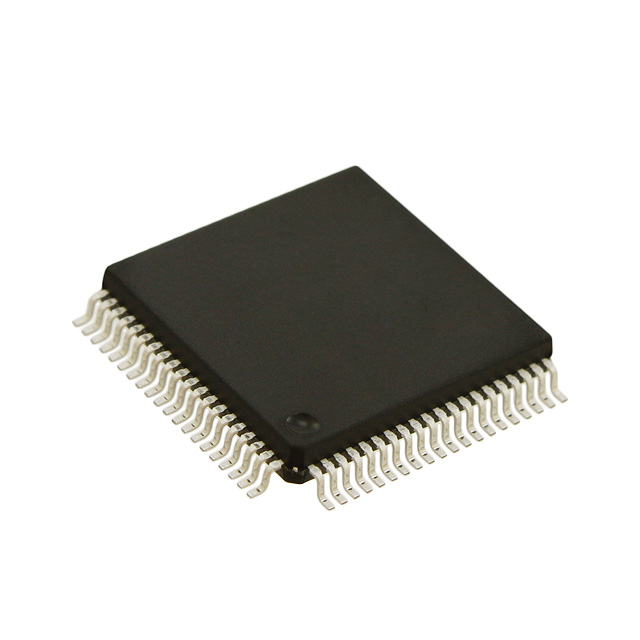

| Package / Case | 80-QFP |
| Peripherals | POR, PWM, WDT |
| Program Memory Size | 32 KB |
| Program Memory Type | FLASH |
| RAM Size | 1 K |
| Speed | 8 MHz |
| Supplier Device Package | 80-QFP (14x14) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XC912 Series
CPU12 HC12 Microcontroller IC 16-Bit 8MHz 32KB (32K x 8) FLASH 80-QFP (14x14)
