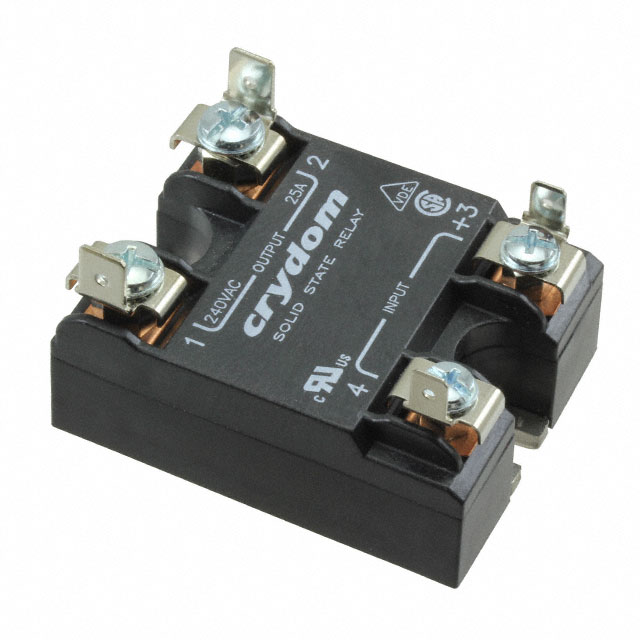

D2425F

Active

Sensata-Crydom

SSR RELAY SPST-NO 25A 24-280V

Search across all available documentation for this part.

Active

Sensata-Crydom

SSR RELAY SPST-NO 25A 24-280V

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Output Type	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Termination Style	Voltage - Load [Min]	Voltage - Load [Max]	Load Current	Circuit
Sensata-Crydom D2425K-B	Chassis Mount	32 V	3 V	AC Zero Cross	CE CSA TUV UL	-40 °C	80 C	Hockey Puck	Screw Terminal	24 V	140 V	25 A
Sensata-Crydom D2425KT-B	Chassis Mount	32 V	3 V	AC Zero Cross	CE CSA cURus TUV	-40 °C	100 °C	Hockey Puck	Screw Terminal	24 V	280 V	25 A	SPST-NC (1 Form B)
Sensata-Crydom D2425K-10	Chassis Mount	32 V	3 V	AC	CE CSA TUV UL	-40 °C	80 C	Hockey Puck	Screw Terminal	24 V	280 V	25 A
Sensata-Crydom D2425P	Chassis Mount	32 V	3 V	AC Zero Cross	CE CSA TUV UL	-40 °C	80 C	Hockey Puck	Screw Terminal	24 V	280 V	25 A
Sensata-Crydom D2425D-10	Chassis Mount	15 V	4 V	AC	CE CSA TUV UL	-40 °C	80 C	Hockey Puck	Quick Connect - 0.250" (6.3mm)	24 V	280 V	25 A	SPST-NO (1 Form A) x 2
Sensata-Crydom D2425KT	Chassis Mount	32 V	3 V	AC Zero Cross	CE CSA cURus TUV	-40 °C	100 °C	Hockey Puck	Screw Terminal	24 V	280 V	25 A
Sensata-Crydom D2425G	Chassis Mount	32 V	3 V	AC Zero Cross	CE CSA TUV UL	-40 °C	80 C	Hockey Puck	Screw Terminal	24 V	280 V	25 A
Sensata-Crydom D2425F	Chassis Mount	32 V	3 V	AC Zero Cross	CE CSA TUV UL	-40 °C	80 C	Hockey Puck	Quick Connect - 0.187"/0.250"	24 V	280 V	25 A
Sensata-Crydom D2425H	Chassis Mount	32 V	3 V	AC Zero Cross	CE CSA TUV UL	-40 °C	80 C	Hockey Puck	Screw Terminal	24 V	280 V	25 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) Hockey Puck
