SD-50X

Active

Texmate

ULTRA SHORT DEPTH 50,000 COUNT L

Search across all available documentation for this part.

Active

Texmate

ULTRA SHORT DEPTH 50,000 COUNT L

Technical Specifications

Parameters and characteristics for this part

Specification	SD-50X

Display Characters - Height [z]	0.5 in
Display Characters - Height [z]	12.7 mm
Display Type	LCD - Black Characters
Measuring Type	Current
Number of Characters Per Row	5
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	96 mm
Panel Cutout Dimensions [y]	48 mm
Termination Style	Screw Terminal
Type	Ammeter
Voltage - Supply	Loop Power

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Display Type	Measuring Type	Number of Characters Per Row	Type	Operating Temperature [Max]	Operating Temperature [Min]	Measuring Range [Min]	Measuring Range [Max]	Display Characters - Height [z]	Display Characters - Height [z]	Termination Style	Voltage - Supply	Voltage - Supply	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
Texmate BN-45	22.2 mm	92 mm	LED - Red Characters	Voltage	4.5	Voltmeter	60 °C	0 °C	-200 V	200 V	14.2 mm	0.56 in	Screw Terminal	5 V
Texmate SD-50X	48 mm	96 mm	LCD - Black Characters	Current	5	Ammeter					12.7 mm	0.5 in	Screw Terminal		Loop Power	-10 °C	50 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 323.00

General part information

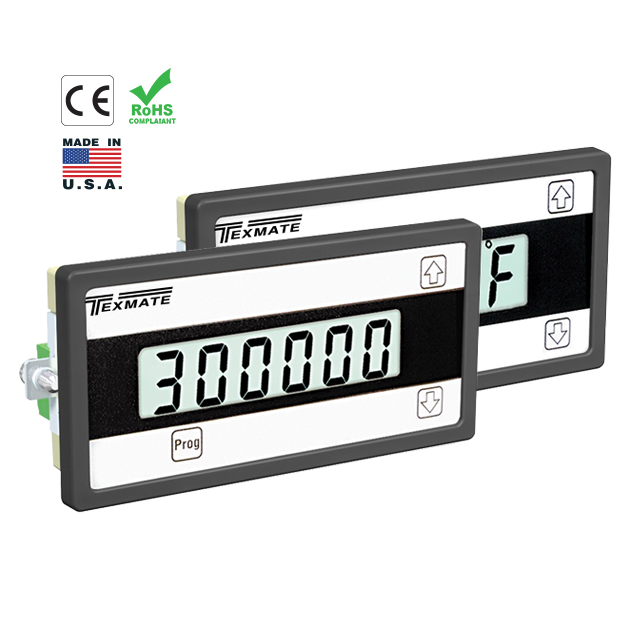

Ammeter LCD - Black Characters Display Panel Mount
