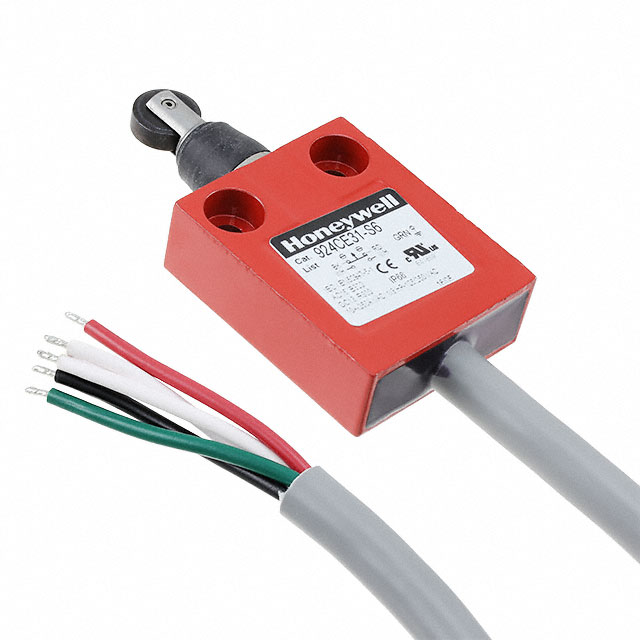

924CE31-S6
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 10A 250V
Deep-Dive with AI
Search across all available documentation for this part.
924CE31-S6
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 10A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 924CE31-S6 |
|---|---|
| Actuator Type | Roller Plunger |
| Circuit | SPDT |
| Current Rating (Amps) | 10 A |
| Features | 6 ft |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 2600 gf |
| Operating Position | 36.1 mm |
| Operating Position | 1.421 in |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Overtravel | 0.039 in |
| Overtravel | 1 mm |
| Pretravel | 0.087 in |
| Pretravel | 2.2 mm |
| Switch Function | On-Mom |
| Termination Style | Cable Leads |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 270.90 | |
Description
General part information
924CE31 Series
Switch SPDT (BBM) Chassis Mount
