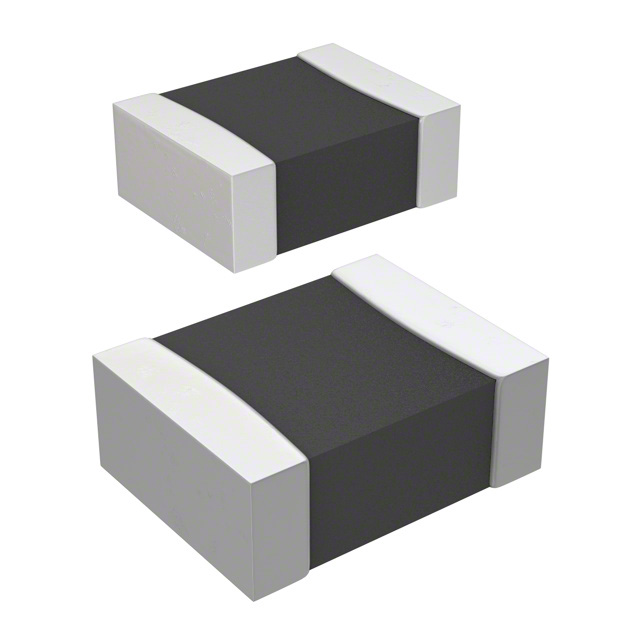

V48AUMLA2220H

Active

Littelfuse/Commercial Vehicle Products

MULTI-LAYER VARISTOR SMF FOR AUTOMOTIVE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AEC Q200 Varistor Selection Guide +1

V48AUMLA2220H

Active

Littelfuse/Commercial Vehicle Products

MULTI-LAYER VARISTOR SMF FOR AUTOMOTIVE

Deep-Dive with AI

DocumentsDatasheet AEC Q200 Varistor Selection Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V48AUMLA2220H

Energy	12 J
Grade	Automotive
Maximum AC Volts [Max]	40 V
Maximum DC Volts [Max]	48 V
Mounting Type	Surface Mount, MLCV
Number of Circuits	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	5750 Metric
Package / Case	2220
Qualification	AEC-Q200
Varistor Voltage (Max) [Max]	66.5 V
Varistor Voltage (Min) [Min]	54.5 V
Varistor Voltage (Typ)	60.5 V

V48AUMLA2220 Series

MULTI-LAYER VARISTOR SMF FOR AUTOMOTIVE

Part	Varistor Voltage (Min) [Min]	Qualification	Grade	Varistor Voltage (Max) [Max]	Maximum AC Volts [Max]	Energy	Package / Case	Package / Case	Number of Circuits	Varistor Voltage (Typ)	Maximum DC Volts [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
Littelfuse/Commercial Vehicle Products V48AUMLA2220H	54.5 V	AEC-Q200	Automotive	66.5 V	40 V	12 J	5750 Metric	2220	1	60.5 V	48 V	125 °C	-55 °C	Surface Mount MLCV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.52
		10	$ 4.06
		25	$ 3.84
		100	$ 3.32
		250	$ 3.15
		500	$ 2.83
	Digi-Reel®	1	$ 4.52
		10	$ 4.06
		25	$ 3.84
		100	$ 3.32
		250	$ 3.15
		500	$ 2.83
	Tape & Reel (TR)	1000	$ 2.15
		2000	$ 2.11
Newark	Each (Supplied on Full Reel)	1	$ 2.79
		2000	$ 2.65
		4000	$ 2.47
		8000	$ 2.30
		12000	$ 2.21
		20000	$ 2.18

Description

General part information

V48AUMLA2220 Series

This 2220inch MLV is for the load dump energy protection under AUML series from Littelfuse for Automotive applications, for example Motorcycle LED lighting etc. It provides surface mount overvoltage protection for applications in Automotive.
