712RAH
ActiveSwitchcraft Inc.
2.5MM 5.5MM 24V DC POWER CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

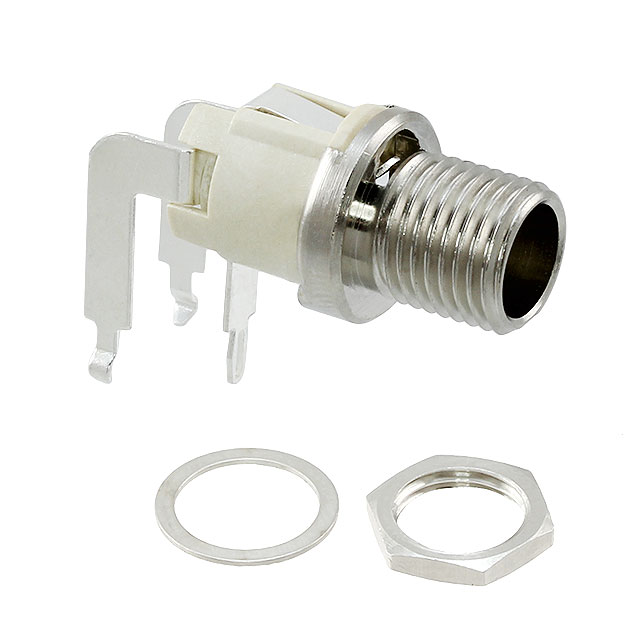

712RAH
ActiveSwitchcraft Inc.
2.5MM 5.5MM 24V DC POWER CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 712RAH |
|---|---|
| Actual Diameter [custom] | 2.5 mm |
| Actual Diameter [custom] | 0.098 " |
| Actual Diameter [custom] | 0.217 " |
| Actual Diameter [custom] | 5.5 mm |
| Body Color | White, Silver |
| Body Material | Copper Alloy |
| Connector Type | Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating [custom] | Nickel |
| Features | Thread Lock, Mounting Hardware |
| Gender | Male |
| Housing Material | Thermoplastic |
| Includes | Connector, Washer, Nut |
| Industry Recognized Mating Diameter [diameter] | 5.5 mm, 2.5 mm |
| Industry Recognized Mating Diameter [diameter] | 0.098 ", 0.217 " |
| Internal Switch(s) | Single Switch |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Thread Size | 5/16"-32 |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
712RA Series
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle
Documents
Technical documentation and resources
