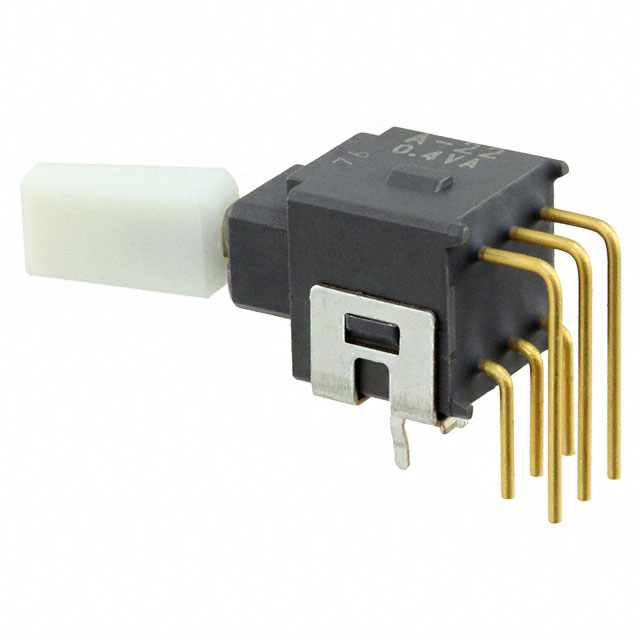

A22KH-AB

Active

NKK Switches

PROCESS SEALED SUBMINIATURE TOGGLE

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED SUBMINIATURE TOGGLE

Technical Specifications

Parameters and characteristics for this part

Specification	A22KH-AB

Actuator Length [x]	9.4 mm
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Actuator Type	Snap On Paddle
Bushing Thread	Unthreaded, Square
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	White Actuator
Illumination	Non-Illuminated
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Current Rating (Amps)	Switch Function	Actuator Length [x]	Termination Style	Features	Voltage Rating - DC	Bushing Thread	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Mounting Type	Voltage Rating - AC	Illumination	Actuator Type	Electrical Life
NKK Switches A22KH-AB	0.4 VA	On-On	9.4 mm	PC Pin	White Actuator	28 V	Unthreaded Square	DPDT	-30 ░C	85 °C	Glass Filled Nylon Polyamide (PA)	Through Hole Right Angle	28 V	Non-Illuminated	Snap On Paddle	50000 Cycles
NKK Switches A22KH-AA	0.4 VA	On-On	9.4 mm	PC Pin	Black Actuator	28 V	Unthreaded Square	DPDT	-30 ░C	85 °C	Glass Filled Nylon Polyamide (PA)	Through Hole Right Angle	28 V	Non-Illuminated	Snap On Paddle	50000 Cycles
NKK Switches A22KH-BB	0.4 VA	On-On		PC Pin	White Actuator	28 V	Unthreaded Square	DPDT	-30 ░C	85 °C	Glass Filled Nylon Polyamide (PA)	Through Hole Right Angle	28 V	Non-Illuminated	Snap On Paddle	50000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Through Hole, Right Angle
