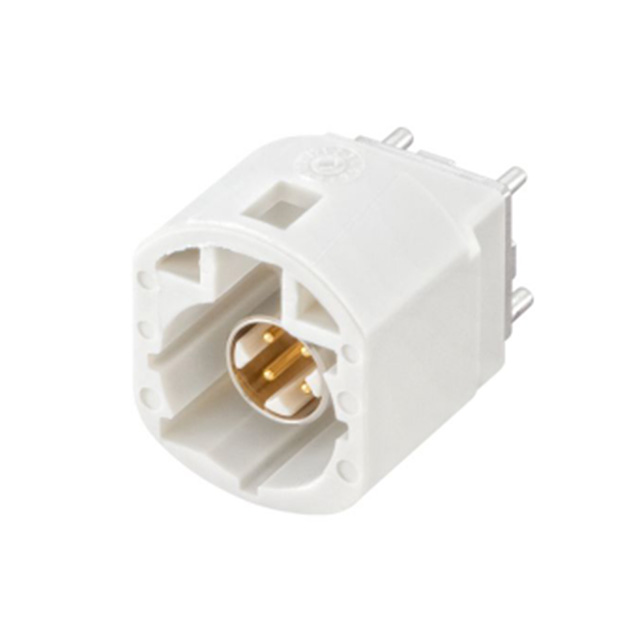

D4S12H-40MA5-B

Active

Rosenberger

CONN HSD FAKRA PLUG STR 100OHM

Search across all available documentation for this part.

Active

Rosenberger

CONN HSD FAKRA PLUG STR 100OHM

Technical Specifications

Parameters and characteristics for this part

Part	Fastening Type	Center Contact Plating	Frequency - Max [Max]	Mating Cycles	Contact Termination	Connector Type	Shield Termination	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Impedance	Center Contact Material	Body Finish	Connector Style	Voltage Rating	Features	Mounting Type	Dielectric Material	Housing Color
Rosenberger D4S12H-40MA5-A	Latch Lock	Gold	2 GHz	25	Solder	Male Pin Plug	Solder	1	-40 °C	105 ░C	Brass	100 Ohms	Brass	Nickel	Fakra HSD® Quadraxial	100 V	Code A	Through Hole	Liquid Crystal Polymer (LCP)	Black
Rosenberger D4S12H-40MA5-B	Latch Lock	Gold	2 GHz	25	Solder	Male Pin Plug	Solder	1	-40 °C	105 ░C	Brass	100 Ohms	Brass	Nickel	Fakra HSD® Quadraxial	100 V	Code B	Through Hole	Liquid Crystal Polymer (LCP)	White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100 Ohms Through Hole Solder
