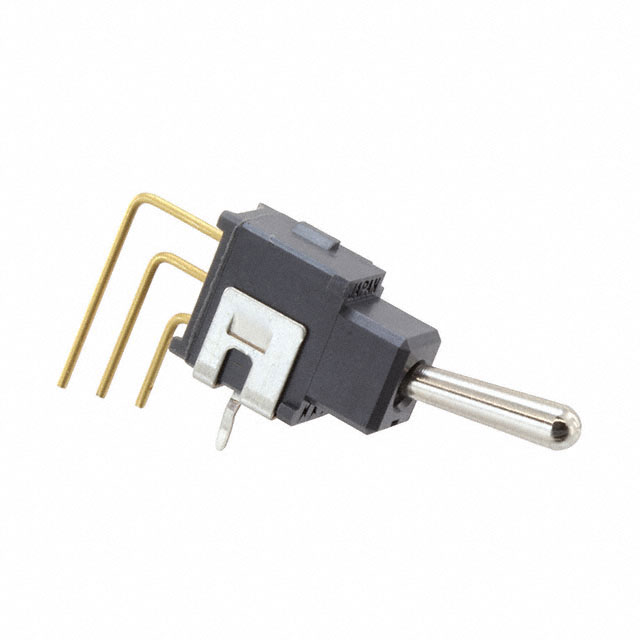

A12AV1

Active

NKK Switches

SWITCH TOGGLE ON NONE ON SPDT BAT LEVER PC PINS 0.1A 28VAC 28VDC 0.4VA PC MOUNT WITH BRACKET

Search across all available documentation for this part.

Active

NKK Switches

SWITCH TOGGLE ON NONE ON SPDT BAT LEVER PC PINS 0.1A 28VAC 28VDC 0.4VA PC MOUNT WITH BRACKET

Technical Specifications

Parameters and characteristics for this part

Specification	A12AV1

Actuator Length [x]	10 mm
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Actuator Type	Standard Round
Bushing Thread	Unthreaded, Square
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Process Sealed
Illumination	Non-Illuminated
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Bushing Thread	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Mounting Type	Actuator Length [x]	Circuit	Features	Illumination	Voltage Rating - AC	Switch Function	Actuator Type	Termination Style	Current Rating (Amps)	Voltage Rating - DC	Electrical Life
NKK Switches A12AV1-GA	Unthreaded Square	-30 ░C	85 °C	Glass Filled Nylon Polyamide (PA)	Right Angle Through Hole Vertical	10 mm	SPDT	Black Cap	Non-Illuminated	28 V	On-On	Standard Round with Cap	PC Pin	0.4 VA	28 V	50000 Cycles
NKK Switches A12AV-GC	Unthreaded Square	-30 ░C	85 °C	Glass Filled Nylon Polyamide (PA)	Right Angle Through Hole Vertical	10 mm	SPDT	Red Cap	Non-Illuminated	28 V	On-On	Standard Round with Cap	PC Pin	0.4 VA	28 V	50000 Cycles
NKK Switches A12AV1	Unthreaded Square	-30 ░C	85 °C	Glass Filled Nylon Polyamide (PA)	Right Angle Through Hole Vertical	10 mm	SPDT	Process Sealed	Non-Illuminated	28 V	On-On	Standard Round	PC Pin	0.4 VA	28 V	50000 Cycles
NKK Switches A12AV-GB	Unthreaded Square	-30 ░C	85 °C	Glass Filled Nylon Polyamide (PA)	Right Angle Through Hole Vertical	10 mm	SPDT	White Cap	Non-Illuminated	28 V	On-On	Standard Round with Cap	PC Pin	0.4 VA	28 V	50000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Through Hole, Right Angle, Vertical
