HFW1130K07M

Active

TE Connectivity Aerospace, Defense and Marine

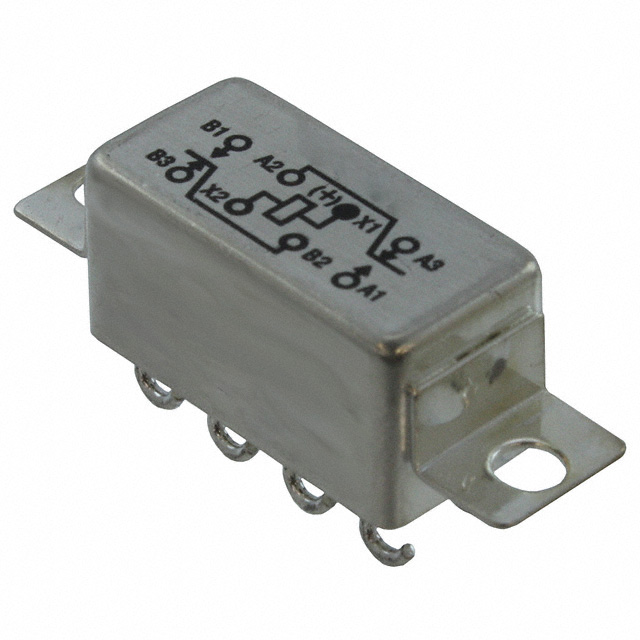

RELAY GEN PURPOSE DPDT 2A 26.5V

Deep-Dive with AI

Search across all available documentation for this part.

HFW1130K07M

Active

TE Connectivity Aerospace, Defense and Marine

RELAY GEN PURPOSE DPDT 2A 26.5V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HFW1130K07M

Coil Current	37.9 mA
Coil Resistance	700 Ohms
Coil Type	Non Latching
Coil Voltage	26.5 VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	2 A
Grade	Military
Mounting Type	Chassis Mount
Must Operate Voltage	13.5 VDC
Must Release Voltage	1.5 VDC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Qualification	MIL-R-39016/6
Relay Type	General Purpose
Seal Rating	Sealed - Hermetically
Switching Voltage	28 VDC
Termination Style	Solder Hook

1617029 Series

Part	Relay Type	Release Time	Contact Rating (Current)	Coil Voltage	Coil Resistance	Operate Time	Termination Style	Switching Voltage	Seal Rating	Mounting Type	Load - Max Switching	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Contact Material	Coil Type	Must Release Voltage	Contact Form	Grade	Qualification
TE Connectivity Aerospace, Defense and Marine 4-1617029-4	General Purpose	4 ms	2 A	5 VDC	27 Ohms	4 ms	PC Pin	28 VDC 115 VAC	Sealed - Hermetically	Through Hole	56 W 230 VA	185.2 mA	125 °C	-65 ░C	2.7 VDC	Gold (Au) Silver (Ag)	Non Latching	0.29 VDC	DPDT (2 Form C)
TE Connectivity Aerospace, Defense and Marine HFW1131G01	General Purpose	4 ms	2 A	12 VDC	160 Ohms	4 ms	Solder Hook		Sealed - Hermetically	Chassis Mount		75 mA	125 °C	-65 ░C	6.4 VDC	Gold (Au) Silver (Ag)	Non Latching	0.7 VDC	DPDT (2 Form C)
TE Connectivity Aerospace, Defense and Marine 1617029-7	General Purpose	4 ms	2 A	12 VDC	160 Ohms	4 ms	Solder Hook		Sealed - Hermetically	Chassis Mount		75 mA	125 °C	-65 ░C	6.4 VDC		Non Latching	0.7 VDC	DPDT (2 Form C)	Military	MIL-R-39016/6
TE Connectivity Aerospace, Defense and Marine HFW1131G00	General Purpose	4 ms	2 A	12 VDC	160 Ohms	4 ms	Solder Hook		Sealed - Hermetically	Chassis Mount		75 mA	125 °C	-65 ░C	6.4 VDC	Gold (Au) Silver (Ag)	Non Latching	0.7 VDC	DPDT (2 Form C)
TE Connectivity Aerospace, Defense and Marine HFW1130F01	General Purpose	4 ms	2 A		40 Ohms	4 ms	Solder Hook		Sealed - Hermetically	Chassis Mount		150 mA	125 °C	-65 ░C		Gold (Au) Silver (Ag)	Non Latching		DPDT (2 Form C)
TE Connectivity Aerospace, Defense and Marine HFW1130K07M	General Purpose		2 A	26.5 VDC	700 Ohms		Solder Hook	28 VDC	Sealed - Hermetically	Chassis Mount		37.9 mA	125 °C	-65 ░C	13.5 VDC		Non Latching	1.5 VDC	DPDT (2 Form C)	Military	MIL-R-39016/6
TE Connectivity Aerospace, Defense and Marine HFW1131K04	General Purpose	4 ms	2 A	26.5 VDC	700 Ohms	4 ms	Solder Hook	28 VDC	Sealed - Hermetically	Chassis Mount		37.9 mA	125 °C	-65 ░C	13.5 VDC		Non Latching	1.5 VDC	DPDT (2 Form C)	Military	MIL-R-39016/6
TE Connectivity Aerospace, Defense and Marine 4-1617029-6	General Purpose		2 A	26.5 VDC	700 Ohms		Solder Hook	30 VDC		Chassis Mount		37.9 mA	125 °C	-65 ░C	13.5 VDC		Non Latching	1.5 VDC	DPDT (2 Form C)
TE Connectivity Aerospace, Defense and Marine HFW1130K06P	General Purpose		2 A	26.5 VDC	700 Ohms		Solder Hook	28 VDC	Sealed - Hermetically	Chassis Mount		37.9 mA	125 °C	-65 ░C	13.5 VDC		Non Latching	1.5 VDC	DPDT (2 Form C)	Military	MIL-R-39016/6
TE Connectivity Aerospace, Defense and Marine 4-1617029-9	General Purpose	4 ms	2 A	26.5 VDC	700 Ohms	4 ms	PC Pin	28 VDC 115 VAC	Sealed - Hermetically	Through Hole	56 W 230 VA	37.9 mA	125 °C	-65 ░C	13.5 VDC	Gold (Au) Silver (Ag)	Non Latching	1.5 VDC	DPDT (2 Form C)
