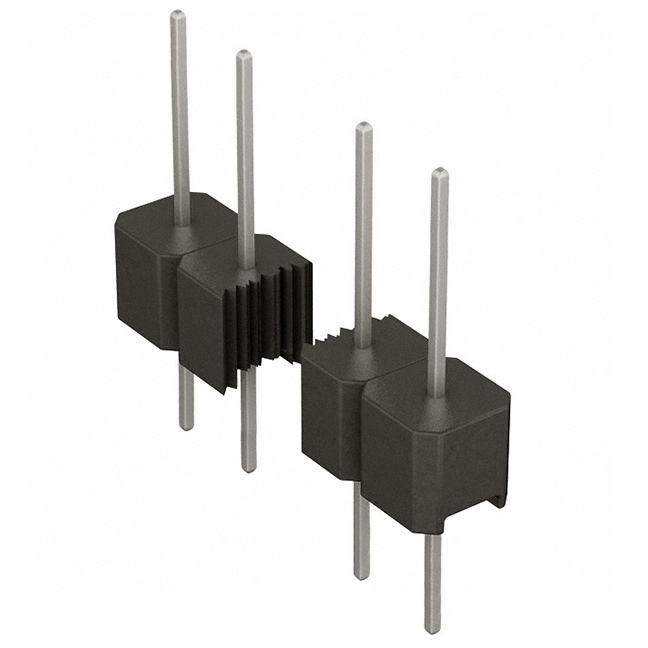

PREC040SAEN-RC

Active

Sullins Connector Solutions

CONN HEADER VERT 40POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PREC040SAEN-RC

Active

Sullins Connector Solutions

CONN HEADER VERT 40POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PREC040SAEN-RC

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	13.21 mm
Contact Length - Post	0.52 "
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	21.55 mm
Overall Contact Length	0.848 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PREC040 Series

Part	Contact Shape	Overall Contact Length	Overall Contact Length	Number of Rows	Insulation Material	Termination	Current Rating (Amps)	Contact Type	Material Flammability Rating	Fastening Type	Number of Positions	Connector Type	Number of Positions Loaded	Insulation Color	Contact Length - Post	Contact Length - Post	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Material	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating [x]	Contact Length - Mating	Style	Shrouding	Contact Finish - Post	Contact Length - Mating [x]	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]
Sullins Connector Solutions PREC040SAEN-RC	Square	21.55 mm	0.848 in	1	Polybutylene Terephthalate (PBT)	Solder	3 A	Male Pin	UL94 V-0	Push-Pull	40	Breakaway Header	All	Black	13.21 mm	0.52 "	Through Hole	0.1 in	2.54 mm	Brass	0.098 in	2.5 mm	-40 °C	105 ░C	0.23 in	5.84 mm	Board to Board Cable	Unshrouded	Tin
Sullins Connector Solutions PREC040SFAN-RC	Square	0.537 "		1	Polybutylene Terephthalate (PBT)	Solder	3 A	Male Pin	UL94 V-0	Push-Pull	40	Breakaway Header	All	Black			Through Hole	0.1 in	2.54 mm	Brass	0.098 in	2.5 mm	-40 °C	105 ░C	0.318 "		Board to Board Cable	Unshrouded	Tin	8.08 mm	13.63 mm	0.12 in	3.05 mm
Sullins Connector Solutions PREC040SACN-RC	Square	16.47 mm	0.648 in	1	Polybutylene Terephthalate (PBT)	Solder	3 A	Male Pin	UL94 V-0	Push-Pull	40	Breakaway Header	All	Black			Through Hole	0.1 in	2.54 mm	Brass	0.098 in	2.5 mm	-40 °C	105 ░C	0.23 in	5.84 mm	Board to Board Cable	Unshrouded	Tin			0.32 in	8.13 mm
Sullins Connector Solutions PREC040SAAN-RC	Square	11.39 mm	0.448 in	1	Polybutylene Terephthalate (PBT)	Solder	3 A	Male Pin	UL94 V-0	Push-Pull	40	Breakaway Header	All	Black			Through Hole	0.1 in	2.54 mm	Brass	0.098 in	2.5 mm	-40 °C	105 ░C	0.23 in	5.84 mm	Board to Board Cable	Unshrouded	Tin			0.12 in	3.05 mm
Sullins Connector Solutions PREC040SBDN-M71RC	Square			1	Polybutylene Terephthalate (PBT)	Solder	3 A	Male Pin	UL94 V-0	Push-Pull	40	Breakaway Header	All	Black			Through Hole Right Angle	0.1 in	2.54 mm	Brass	0.098 in	2.5 mm	-40 °C	105 ░C	0.23 in	5.84 mm	Board to Board Cable	Unshrouded	Tin			0.42 in	10.67 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.52

Description

General part information

PREC040 Series

Connector Header Through Hole 40 position 0.100" (2.54mm)
