TR9WE5000T00CIMR6B

Active

GlobTek, Inc.

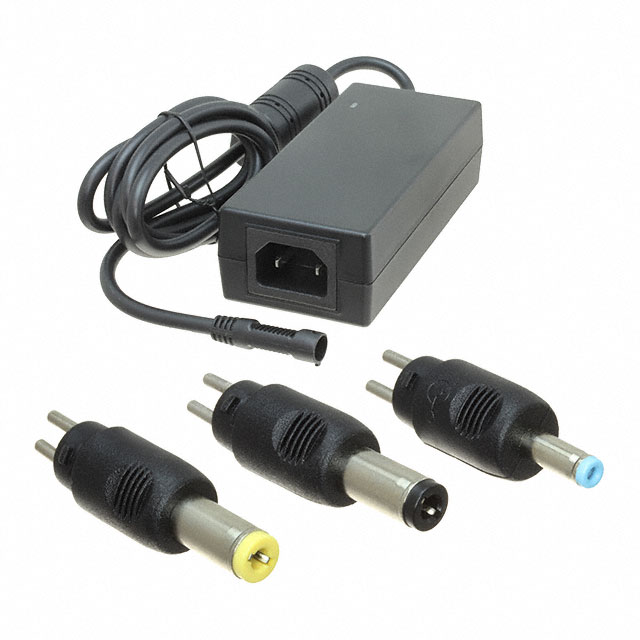

AC/DC DESKTOP ADAPTER 12V 60W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9WE5000T00CIMR6B

Applications	ITE (Commercial), Medical
Approval Agency	CE, cETLus, S-Mark, UKRSepro, VCCI, RCM, CB, CCC, EAC, PSE
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	5 A
Efficiency	Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C18
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Power (Watts)	60 W
Region Utilized	International
Size / Dimension [x]	4.63 in
Size / Dimension [x]	117.5 mm
Size / Dimension [y]	2.11 in
Size / Dimension [y]	53.5 mm
Size / Dimension [z]	1.35 "
Size / Dimension [z]	34.2 mm
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Cord Length	Cord Length	Applications	Input Type	Polarization	Input Connector	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	No Load Power Consumption [Max]	Form	Power (Watts)	Output Connector	Output Connector [diameter]	Output Connector [x]	Current - Output (Max) [Max]	Region Utilized	Efficiency	Approval Agency	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]
GlobTek, Inc. TR9WE5000LCPCIMR6B	-20 C	40 °C	1.2 m	47.2 in	ITE (Commercial) Medical	Cord	Positive Center	IEC 320-C18	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm	150 mW	Desktop (Class II)	60 W	Barrel Plug	2.5 mm 5.5 mm	11 mm	5 A	International	Level VI	CB CCC CE cETLus EAC PSE RCM S-Mark UKRSepro VCCI	12 V	90 VAC	264 VAC
GlobTek, Inc. TR9WE5000T00CIMR6B	-20 C	40 °C	1.2 m	47.2 in	ITE (Commercial) Medical	Cord		IEC 320-C18	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm	150 mW	Desktop (Class II)	60 W	1.3mm x 3.5mm Barrel Plug Kit			5 A	International	Level VI	CB CCC CE cETLus EAC PSE RCM S-Mark UKRSepro VCCI	12 V	90 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 60 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
