27647202RP2

Active

MH Connectors

27647202RP2 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MH Connectors

27647202RP2 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	27647202RP2

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	0.15 in
Contact Length - Mating	3.81 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.01 mm
Insulation Height	0.158 "
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	72
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

Part	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Number of Positions Loaded	Insulation Color	Insulation Material	Contact Material	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Contact Shape	Shrouding	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Contact Type	Mounting Type	Style	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Termination	Number of Positions	Contact Finish - Mating
MH Connectors 27647202RP2	0.118 in	3 mm	Gold	All	Black	Nylon 6T Polyamide (PA6T)	Copper Alloy	Push-Pull	0.079 in	2 mm	Header	Square	Unshrouded	2	-40 °C	105 ░C	0.15 in	3.81 mm	Male Pin	Through Hole Right Angle	Board to Board Cable	0.079 in	2 mm	UL94 V-0	4.01 mm	0.158 "	Flash	Flash	Solder	72	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

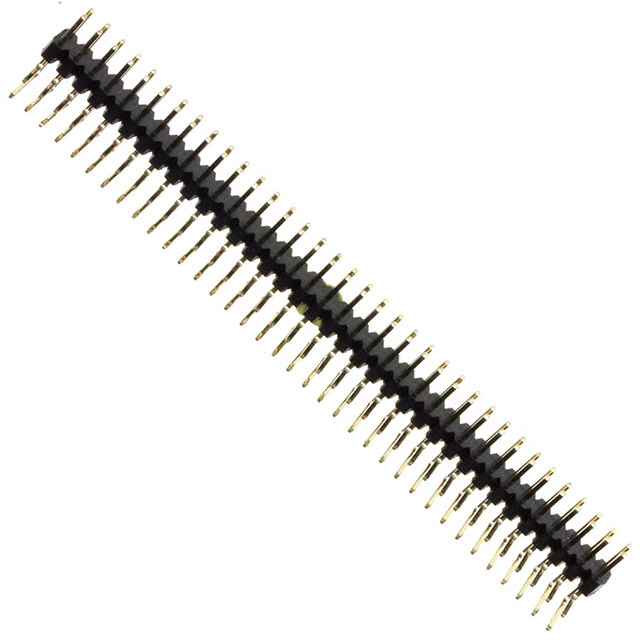

Connector Header Through Hole, Right Angle 72 position 0.079" (2.00mm)
