RCLAMP0502BATCT
ActiveSemtech Corporation

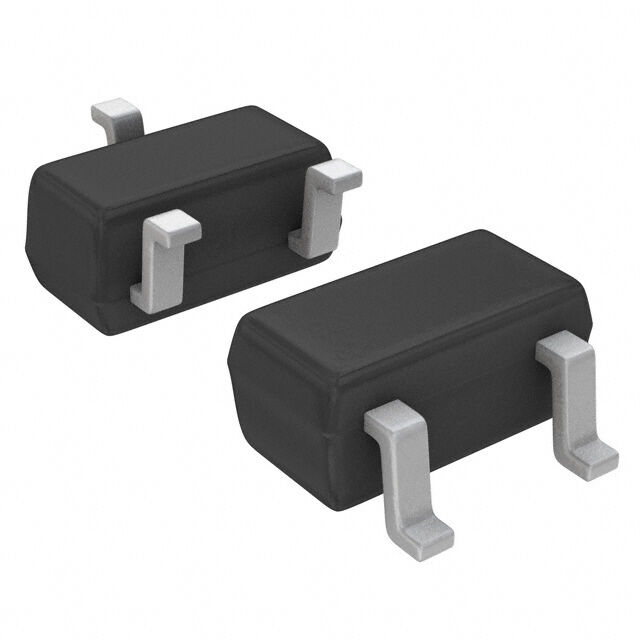

TVS DIODE, RAILCLAMP SERIES, UNIDIRECTIONAL, 5 V, 25 V, SC-75, 3 PINS
Deep-Dive with AI
Search across all available documentation for this part.
RCLAMP0502BATCT
ActiveSemtech Corporation
TVS DIODE, RAILCLAMP SERIES, UNIDIRECTIONAL, 5 V, 25 V, SC-75, 3 PINS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RCLAMP0502BATCT |
|---|---|
| Applications | General Purpose |
| Capacitance @ Frequency | 1.2 pF |
| Current - Peak Pulse (10/1000µs) | 5 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SC-75, SOT-416 |
| Power - Peak Pulse | 125 W |
| Power Line Protection | False |
| Supplier Device Package | SC-75 (SOT523) |
| Type | Zener |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) [Min] | 6 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 25 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
