H9020-01 - H9020

H9020-01

Active
Harwin Inc.

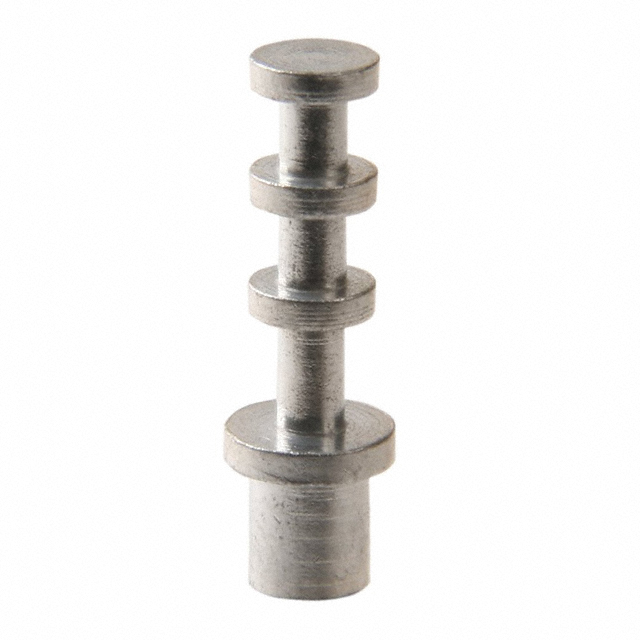

TURRET SOLDER / PRESS MOUNT TERMINAL, NON INSULATED, 2.45 MM, TIN, 10.04 MM, 2.39 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet3D Product Image EN+1
H9020-01 - H9020

H9020-01

Active
Harwin Inc.

TURRET SOLDER / PRESS MOUNT TERMINAL, NON INSULATED, 2.45 MM, TIN, 10.04 MM, 2.39 MM

Deep-Dive with AI

DocumentsDatasheet3D Product Image EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationH9020-01
Board Thickness1.6 mm
Board Thickness0.063 in
Contact FinishTin
Contact MaterialBrass Alloy
Diameter - Turret Head [diameter]2.36 mm
Diameter - Turret Head [diameter]0.093 in
Flange Diameter3.18 mm
Flange Diameter [diameter]0.125 in
InsulationNon-Insulated
Length - Above Board [x]7.65 mm
Length - Above Board [x]0.301 in
Length - Below Flange [x]0.094 in
Length - Below Flange [x]2.39 mm
Length - Overall [x]0.395 in
Length - Overall [x]10.03 mm
Mounting Hole Diameter [Max] [diameter]2.44 mm
Mounting Hole Diameter [Max] [diameter]0.096 in
Mounting Hole Diameter [Min] [diameter]0.092 in
Mounting Hole Diameter [Min] [diameter]2.34 mm
Mounting TypeThrough Hole
Number of TurretsTriple
Staking Side ID [diameter]1.63 mm
Staking Side ID [diameter]0.064 "
Terminal TypeSingle End
TerminationSwage

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.52
10$ 0.46
25$ 0.42
50$ 0.39
100$ 0.38
250$ 0.34
500$ 0.33
1000$ 0.27
3000$ 0.25
NewarkEach 1000$ 0.27

Description

General part information

H9020 Series

Terminal Turret Connector Single End 0.301" (7.65mm) Tin
