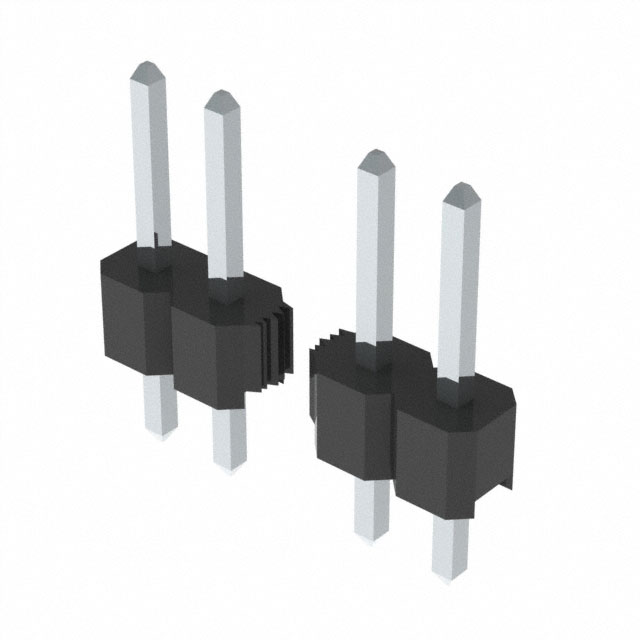

PREC039SAAN-RC

Active

Sullins Connector Solutions

CONN HEADER VERT 39POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PREC039SAAN-RC

Active

Sullins Connector Solutions

CONN HEADER VERT 39POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PREC039SAAN-RC

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	39
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	0.448 in
Overall Contact Length	11.39 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PREC039 Series

Part	Number of Rows	Contact Material	Overall Contact Length	Overall Contact Length	Fastening Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Positions	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Connector Type	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Shape	Current Rating (Amps)	Insulation Color	Shrouding	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Insulation Height [z]	Insulation Height [z]	Insulation Material	Material Flammability Rating	Contact Length - Mating	Overall Contact Length	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions PREC039DFAN-RC	2	Brass	13.63 mm	0.537 "	Push-Pull	0.318 "	8.08 mm	78	All	0.1 in	2.54 mm	Breakaway Header	Board to Board Cable	2.54 mm	0.1 in	Tin	-40 °C	105 ░C	Solder	Square	3 A	Black	Unshrouded	Through Hole	0.12 in	3.05 mm	Male Pin	0.098 in	2.5 mm	Polybutylene Terephthalate (PBT)	UL94 V-0
Sullins Connector Solutions PREC039SACN-RC	1	Brass		16.47 mm	Push-Pull	0.23 in		39	All	0.1 in	2.54 mm	Breakaway Header	Board to Board Cable			Tin	-40 °C	105 ░C	Solder	Square	3 A	Black	Unshrouded	Through Hole	0.32 in	8.13 mm	Male Pin	0.098 in	2.5 mm	Polybutylene Terephthalate (PBT)	UL94 V-0	5.84 mm	0.648 in
Sullins Connector Solutions PREC039SBAN-M71RC	1	Brass			Push-Pull	0.23 in		39	All	0.1 in	2.54 mm	Breakaway Header	Board to Board Cable			Tin	-40 °C	105 ░C	Solder	Square	3 A	Black	Unshrouded	Through Hole Right Angle	0.12 in	3.05 mm	Male Pin	0.098 in	2.5 mm	Polybutylene Terephthalate (PBT)	UL94 V-0	5.84 mm
Sullins Connector Solutions PREC039SAAN-RC	1	Brass		11.39 mm	Push-Pull	0.23 in		39	All	0.1 in	2.54 mm	Breakaway Header	Board to Board Cable			Tin	-40 °C	105 ░C	Solder	Square	3 A	Black	Unshrouded	Through Hole	0.12 in	3.05 mm	Male Pin	0.098 in	2.5 mm	Polybutylene Terephthalate (PBT)	UL94 V-0	5.84 mm	0.448 in
Sullins Connector Solutions PREC039SABN-RC	1	Brass		14.18 mm	Push-Pull	0.23 in		39	All	0.1 in	2.54 mm	Breakaway Header	Board to Board Cable			Tin	-40 °C	105 ░C	Solder	Square	3 A	Black	Unshrouded	Through Hole			Male Pin	0.098 in	2.5 mm	Polybutylene Terephthalate (PBT)	UL94 V-0	5.84 mm	0.558 in	0.23 in	5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.02
		10	$ 0.78
		100	$ 0.60
		500	$ 0.50
		1000	$ 0.46
		5000	$ 0.41

Description

General part information

PREC039 Series

Connector Header Through Hole 39 position 0.100" (2.54mm)
