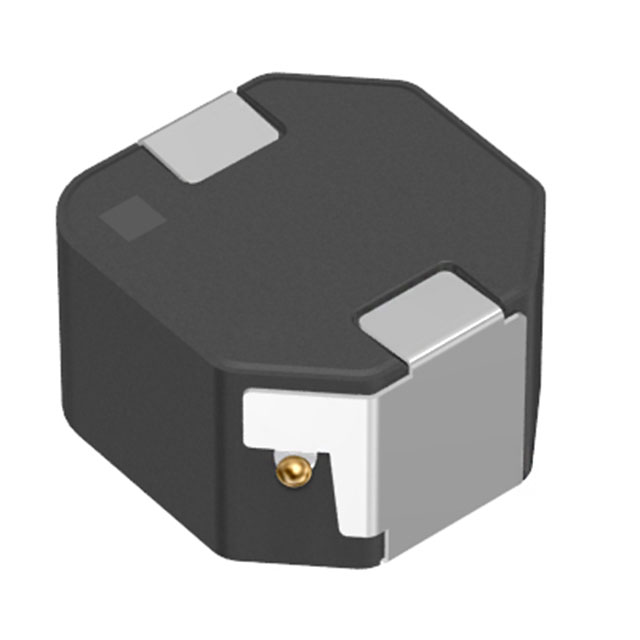

SPM10065VT-220M-D
ActiveEPCOS - TDK Electronics
POW INDUCTOR, AEC-Q200, 22UH, SHLD, 10.5A ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
SPM10065VT-220M-D
ActiveEPCOS - TDK Electronics
POW INDUCTOR, AEC-Q200, 22UH, SHLD, 10.5A ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SPM10065VT-220M-D |
|---|---|
| Current - Saturation (Isat) | 7.8 A |
| Current Rating (Amps) | 5.4 A |
| DC Resistance (DCR) | 43.3 mOhm |
| Height - Seated (Max) [Max] [z] | 0.256 in |
| Height - Seated (Max) [Max] [z] | 6.5 mm |
| Inductance | 22 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal Composite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Supplier Device Package | 1006 |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.52 | |
| 10 | $ 1.29 | |||
| 25 | $ 1.17 | |||
| 50 | $ 1.10 | |||
| 100 | $ 0.91 | |||
| 250 | $ 0.84 | |||
| Digi-Reel® | 1 | $ 1.52 | ||
| 10 | $ 1.29 | |||
| 25 | $ 1.17 | |||
| 50 | $ 1.10 | |||
| 100 | $ 0.91 | |||
| 250 | $ 0.84 | |||
| Tape & Reel (TR) | 500 | $ 0.80 | ||
| 1000 | $ 0.73 | |||
| 2500 | $ 0.70 | |||
| 5000 | $ 0.68 | |||
| 12500 | $ 0.66 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.13 | |
| 10 | $ 0.90 | |||
| 25 | $ 0.84 | |||
| 50 | $ 0.78 | |||
| 100 | $ 0.73 | |||
| 250 | $ 0.67 | |||
| 1000 | $ 0.48 | |||
Description
General part information
SPM10065V Series
22 µH Shielded Drum Core, Wirewound Inductor 5.4 A 43.3mOhm Nonstandard
