L001
ActiveEase Electronics

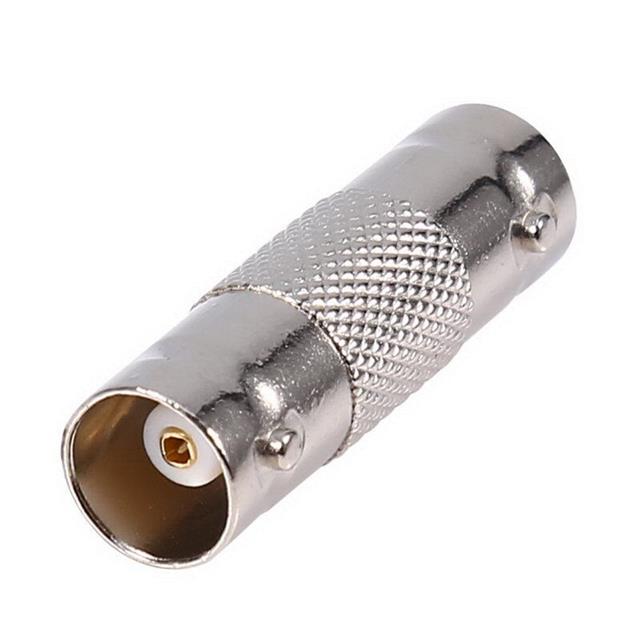

CONN ADPT BNC F-F COUPLER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L001
ActiveEase Electronics
CONN ADPT BNC F-F COUPLER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L001 |
|---|---|
| Adapter Series | BNC to BNC |
| Adapter Type | Jack to Jack |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, BNC Jack |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.78 | |
| 2 | $ 1.70 | |||
| 3 | $ 1.65 | |||
| 5 | $ 1.59 | |||
| 7 | $ 1.56 | |||
| 10 | $ 1.52 | |||
| 25 | $ 1.42 | |||
| 50 | $ 1.35 | |||
| 100 | $ 1.29 | |||
Description
General part information
- Series
Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 50 Ohms
