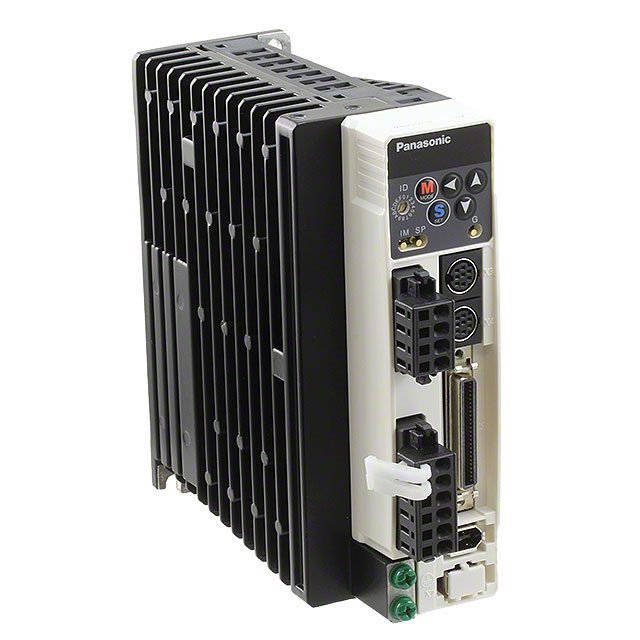

MBDDT2110

Obsolete

Panasonic Industrial Automation Sales

SERVO DRIVER 15A 115V LOAD

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

SERVO DRIVER 15A 115V LOAD

Technical Specifications

Parameters and characteristics for this part

Specification	MBDDT2110

Control / Drive Type	Servo AC
Current - Output	15 A
For Use With/Related Products	MINAS A4 Series
Interface	RS-232, RS-485
Motor Type	Servo
Mounting Type	Chassis Mount
Type	Module
Voltage - Load	115 V
Voltage - Supply [Max]	115 VAC
Voltage - Supply [Min]	100 VAC
Wattage - Load	400 W
Weight	1 kg
Weight	2.3 lbs

Part	Voltage - Load	Interface	Motor Type	Mounting Type	For Use With/Related Products	Current - Output	Weight	Weight	Voltage - Supply [Min]	Voltage - Supply [Max]	Wattage - Load	Type	Control / Drive Type
Panasonic Industrial Automation Sales MBDDT2210003	240 V	RS-232 RS-485	Servo	Chassis Mount	MINAS A4 Series	15 A	1 kg	2.3 lbs	200 VAC	240 VAC	400 W	Module	Servo AC
Panasonic Industrial Automation Sales MBDDT2110003	115 V	RS-232 RS-485	Servo	Chassis Mount	MINAS A4 Series	15 A	1 kg	2.3 lbs	100 VAC	115 VAC	400 W	Module	Servo AC
Panasonic Industrial Automation Sales MBDDT2210N	240 V	RS-232 RS-485	Servo	Chassis Mount	MINAS A4 Series	15 A	1 kg	2.3 lbs	200 VAC	240 VAC	400 W	Module	Servo AC
Panasonic Industrial Automation Sales MBDDT2110	115 V	RS-232 RS-485	Servo	Chassis Mount	MINAS A4 Series	15 A	1 kg	2.3 lbs	100 VAC	115 VAC	400 W	Module	Servo AC
Panasonic Industrial Automation Sales MBDDT2210	240 V	RS-232 RS-485	Servo	Chassis Mount	MINAS A4 Series	15 A	1 kg	2.3 lbs	200 VAC	240 VAC	400 W	Module	Servo AC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Servo AC 100 ~ 115VAC Supply 15A 115V Load

Technical documentation and resources
