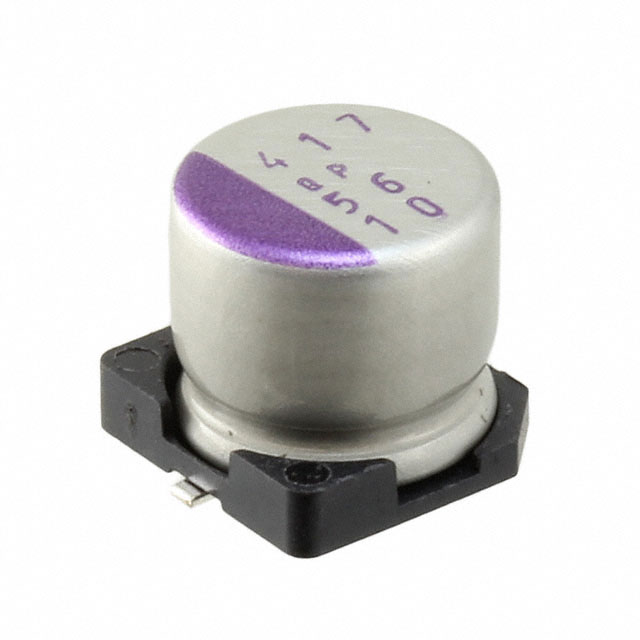

10SVQP56M - 10SVQP56M

10SVQP56M

Active
Panasonic Industrial Automation Sales

OS-CON SMD, SVQP SERIES ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENProduct Change Notice EN+1
10SVQP56M - 10SVQP56M

10SVQP56M

Active
Panasonic Industrial Automation Sales

OS-CON SMD, SVQP SERIES ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet ENProduct Change Notice EN+1

Technical Specifications

Parameters and characteristics for this part

Specification10SVQP56M
ApplicationsGeneral Purpose
Capacitance56 µF
ESR (Equivalent Series Resistance)45 mOhm
Height - Seated (Max) [Max]0.236 in
Height - Seated (Max) [Max]6 mm
Lifetime @ Temp.1000 Hrs
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Package / CaseRadial, Can - SMD
Ripple Current @ High Frequency1.7 A
Ripple Current @ Low Frequency85 mA
Size / Dimension [diameter]0.248 in
Size / Dimension [diameter]6.3 mm
Surface Mount Land Size [x]6.6 mm
Surface Mount Land Size [x]0.26 in
Surface Mount Land Size [y]0.26 in
Surface Mount Land Size [y]6.6 mm
Tolerance20 %
TypePolymer
Voltage - Rated10 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.52
10$ 1.00
50$ 0.89
100$ 0.79
500$ 0.64
Digi-Reel® 1$ 1.52
10$ 1.00
50$ 0.89
100$ 0.79
500$ 0.64
Tape & Reel (TR) 1000$ 0.57
NewarkEach (Supplied on Full Reel) 1000$ 0.68
2000$ 0.61
4000$ 0.55
6000$ 0.53
10000$ 0.52

Description

General part information

10SVQP Series

OS-CON SMD, SVQP SERIES ROHS COMPLIANT: YES
