UPL220-009

Active

Cinch Connectivity Solutions Trompeter

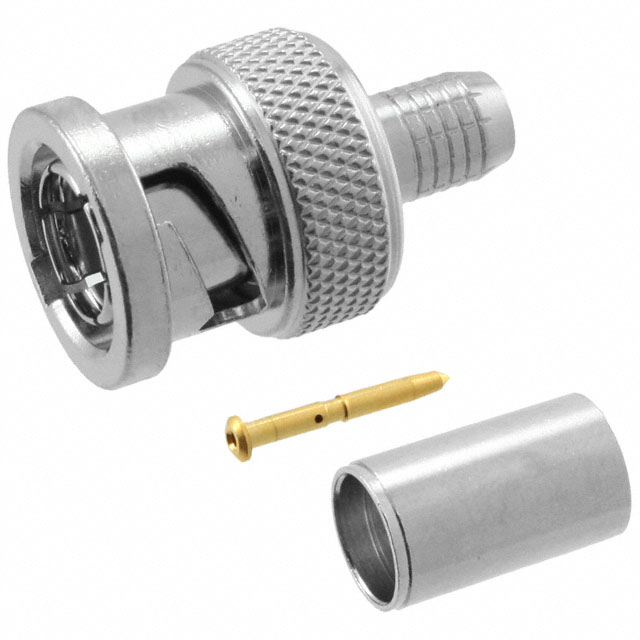

CONN BNC PLUG STR 75 OHM CRIMP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG STR 75 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	UPL220-009

Body Finish	Nickel
Body Material	Brass
Cable Group	Belden 8218, Essex 21-597, YR23023
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Number of Ports	Center Contact Plating	Fastening Type	Cable Group	Dielectric Material	Housing Color	Voltage Rating	Connector Style	Impedance	Body Material	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Contact Termination	Body Finish	Mounting Type	Connector Type	Center Contact Material	Includes
Cinch Connectivity Solutions Trompeter UPL220-009	1	Gold	Bayonet Lock	Belden 8218 Essex 21-597 YR23023	Polytetrafluoroethylene (PTFE)	Silver	500 V	BNC	75 Ohms	Brass	Crimp	-65 ░C	165 °C	4 GHz	Crimp	Nickel	Free Hanging (In-Line)	Male Pin Plug	Brass
Cinch Connectivity Solutions Trompeter UPL220-004	1	Gold	Bayonet Lock	187 RG-179	Polytetrafluoroethylene (PTFE)	Silver	500 V	BNC	75 Ohms	Brass	Crimp	-65 ░C	165 °C	4 GHz	Crimp	Nickel	Free Hanging (In-Line)	Male Pin Plug	Brass	1 Bushing 1 Connector 1 Contact 1 Sleeve

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
