DC60D40C
ActiveSensata-Crydom

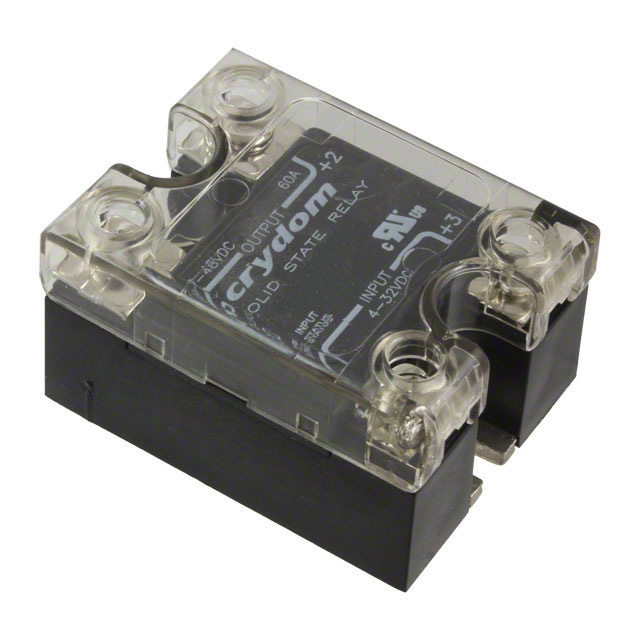

SSR RELAY SPST-NO 40A 1-48V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsCE Declaration of Conformity
DC60D40C
ActiveSensata-Crydom
SSR RELAY SPST-NO 40A 1-48V
Deep-Dive with AI
DocumentsCE Declaration of Conformity
Technical Specifications
Parameters and characteristics for this part
| Specification | DC60D40C |
|---|---|
| Approval Agency | CE, cURus |
| Load Current | 40 A |
| Mounting Type | Chassis Mount |
| On-State Resistance (Max) [Max] | 9 mOhms |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC |
| Package / Case | Hockey Puck |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 4 V |
| Voltage - Load [Max] | 48 V |
| Voltage - Load [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 126.92 | |
| 10 | $ 120.87 | |||
| 50 | $ 115.38 | |||
Description
General part information
DC60D4 Series
Solid State SPST-NO (1 Form A) Hockey Puck
Documents
Technical documentation and resources
