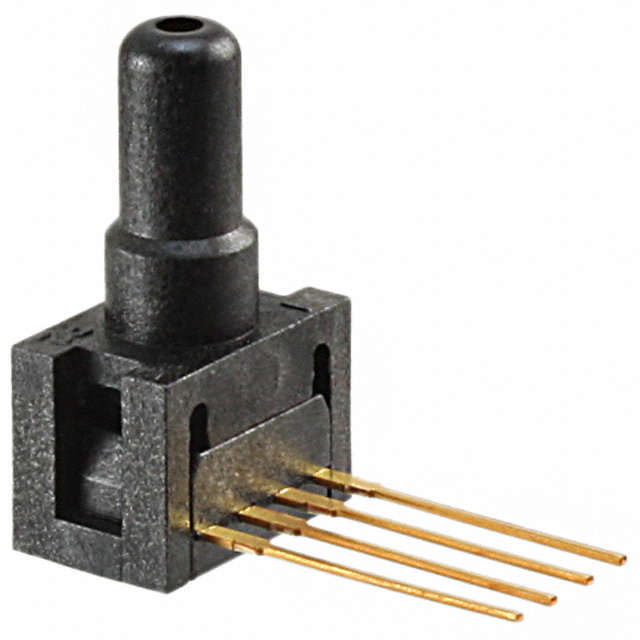

24PCFFA6G

Active

Honeywell Sensing and Productivity Solutions

SENSOR 100PSIC 0.2" .225V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 100PSIC 0.2" .225V

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Maximum Pressure	Maximum Pressure	Operating Pressure	Operating Pressure	Mounting Type	Pressure Type	Port Style	Output Type	Applications	Accuracy	Output [Min]	Output [Max]	Port Size	Port Size	Port Size	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style
Honeywell Sensing and Productivity Solutions 24PCFFA6D	4-SIP Module	1378.95 kPa	200 PSI	100 PSI	689.48 kPa	Through Hole	Differential	Barbless	Wheatstone Bridge	Board Mount	1 %	0 mV	225 mV	Dual Male Tube	5 mm	0.2 "	85 °C	-40 °C	12 V	10 VDC	PC Pin
Honeywell Sensing and Productivity Solutions 24PCFFA6G	4-SIP Module	1378.95 kPa	200 PSI	100 PSI	689.48 kPa	Through Hole	Compound	Barbless	Wheatstone Bridge	Board Mount	1 %	0 mV	225 mV		0.2 " 5 mm		85 °C	-40 °C	12 V	10 VDC	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 53.29

General part information

Pressure Sensor ±100PSI (±689.48kPa) Compound Male - 0.2" (5mm) Tube 0 mV ~ 225 mV (10V) 4-SIP Module
