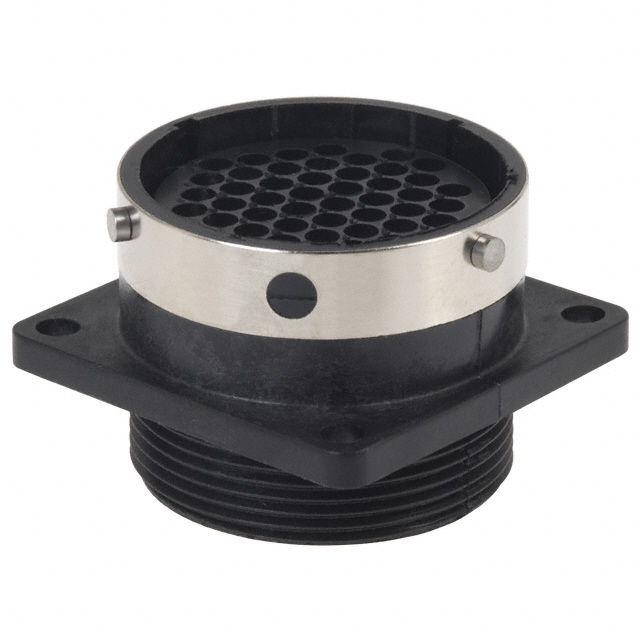

UTG0-24-48S

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG FMALE 48POS PNL MT

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG FMALE 48POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	UTG0-24-48S

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black, Silver
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	48
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Shell Size - Insert [Max]	48
Shell Size - Insert [Min]	24
Shielding	Unshielded
Type	For Female Sockets

Part	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Orientation	Housing Color	Shielding	Contact Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Type	Material Flammability Rating	Note	Insert Material	Contact Size	Connector Type	Mounting Feature	Fastening Type
Souriau-Sunbank by Eaton UTG0-24-48S	24	48	N	Black Silver	Unshielded	Crimp	48	-55 °C	125 °C	Circular	For Female Sockets	UL94 V-0	Contacts Not Included	Thermoplastic Glass Filled	16	Receptacle Housing	Flange	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

48 Position Circular Connector Receptacle Housing Panel Mount
