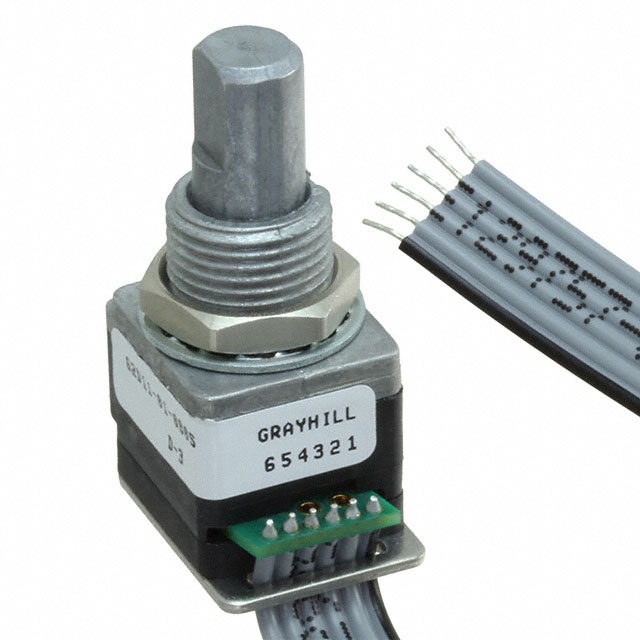

62HS22-H9-050S

Active

Grayhill Inc.

ROTARY ENCODER OPTICAL 16PPR

Search across all available documentation for this part.

Active

Grayhill Inc.

ROTARY ENCODER OPTICAL 16PPR

Technical Specifications

Parameters and characteristics for this part

Encoders 62H3030-H9-060C

Part	Orientation	Rotational Life (Cycles Min)	Output Type	Termination Style	Actuator Type	Encoder Type	Pulses per Revolution	Voltage - Supply [Min]	Voltage - Supply [Max]
Grayhill Inc. 62HS22-H9-050S	Vertical	1M	Quadrature (Incremental)	Cable Leads	Concentric	Optical	16
Grayhill Inc. 62H2222-H9-025C	User Selectable	1M	2-Bit NPN - Open Collector Quadrature	Cable with Connector	1/8" Dia Flatted End	Optical		4.75 V	5.25 V
Grayhill Inc. 62HN30-H9-060C	User Selectable	1M	2-Bit NPN - Open Collector Quadrature	Cable with Connector	1/8" Dia Flatted End	Optical		4.75 V	5.25 V
Grayhill Inc. 62HS22-H0-140S	Vertical	1M	Quadrature (Incremental)	Cable Leads	Concentric	Optical	16
Grayhill Inc. 62HS22-H0-040C	Vertical	1M	Quadrature (Incremental)	Cable with Connector	Concentric	Optical	16
Grayhill Inc. 62HN30-H9-120C	User Selectable	1M	2-Bit NPN - Open Collector Quadrature	Cable with Connector	1/8" Dia Flatted End	Optical		4.75 V	5.25 V
Grayhill Inc. 62HS22-H9-140S	Vertical	1M	Quadrature (Incremental)	Cable Leads	Concentric	Optical	16
Grayhill Inc. 62HS22-H9-020S	Vertical	1M	Quadrature (Incremental)	Cable Leads	Concentric	Optical	16
Grayhill Inc. 62H3030-H9-060C	User Selectable	1M	2-Bit NPN - Open Collector Quadrature	Cable with Connector	1/8" Dia Flatted End	Optical		4.75 V	5.25 V
Grayhill Inc. 62H3030-H9-100C	User Selectable	1M	2-Bit NPN - Open Collector Quadrature	Cable with Connector	1/8" Dia Flatted End	Optical		4.75 V	5.25 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Encoders 62H3030-H9-060C
