19370100528

Active

HARTING Technology Group

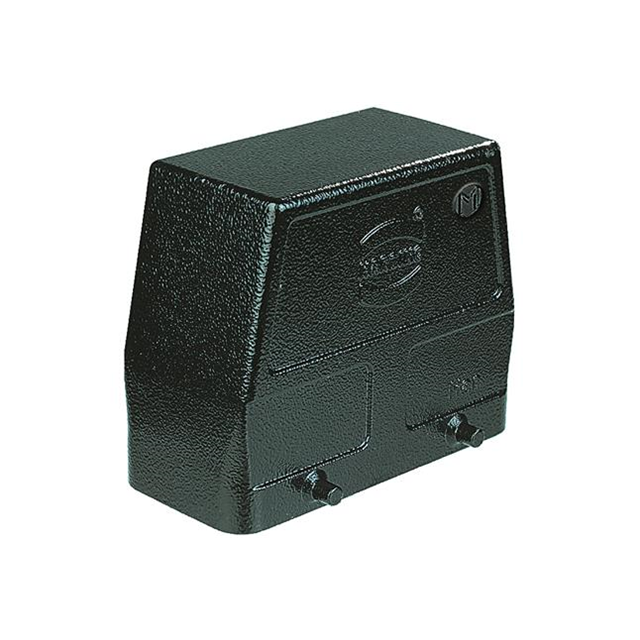

10B MARINE HOOD SIDE ENTRY, DOUBLE LEVER, HIGH CONSTRUCTION, M40

Search across all available documentation for this part.

Active

HARTING Technology Group

10B MARINE HOOD SIDE ENTRY, DOUBLE LEVER, HIGH CONSTRUCTION, M40

Technical Specifications

Parameters and characteristics for this part

Part	Style	Size	Housing Color	Connector Type	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Housing Material	Housing Finish	Ingress Protection	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Features
HARTING Technology Group 19370100447	Top Entry	10B	Black	Hood	M32	125 °C	-40 °C	Locking Clip (1) on Base Bottom	72.6 mm	2.835 in	43 mm	1.693 in	2.858 in	72 mm	Aluminum Die Cast	Powder Coated	IP65 - Dust Tight Water Resistant
HARTING Technology Group 19370100272	Side Entry	10B	Black	Base - Box Mount	M32	125 °C	-40 °C	Locking Clip (2) on Base Bottom		80.8 mm		57 mm	94 mm		Aluminum Die Cast	Powder Coated	IP65 - Dust Tight Water Resistant	3.701 "	2.244 "	3.181 "	Feed Through
HARTING Technology Group 19370100465	Dual Top Entry	10B	Black	Hood	M20	125 °C	-40 °C	Locking Clip (2) on Base Bottom	72.6 mm	2.835 in	43 mm	1.693 in	2.858 in	72 mm	Aluminum Die Cast	Powder Coated	IP65 - Dust Tight Water Resistant
HARTING Technology Group 19370100528	Side Entry	10B	Black	Hood		125 °C	-40 °C	Locking Clip (2) on Base Bottom	72.6 mm	2.835 in	43 mm	1.693 in	2.858 in	72 mm	Aluminum Die Cast	Powder Coated	IP65 IP66 IP67
HARTING Technology Group 19370100526	Side Entry	10B	Black	Hood	M25	125 °C	-40 °C	Locking Clip (2) on Base Bottom	72.6 mm	2.835 in	43 mm	1.693 in	2.858 in	72 mm	Aluminum Die Cast	Powder Coated	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry M40 10B IP65/IP66/IP67 - Dust Tight, Water Resistant, Waterproof
