KF22X-A15P-N
ActiveKycon, Inc.

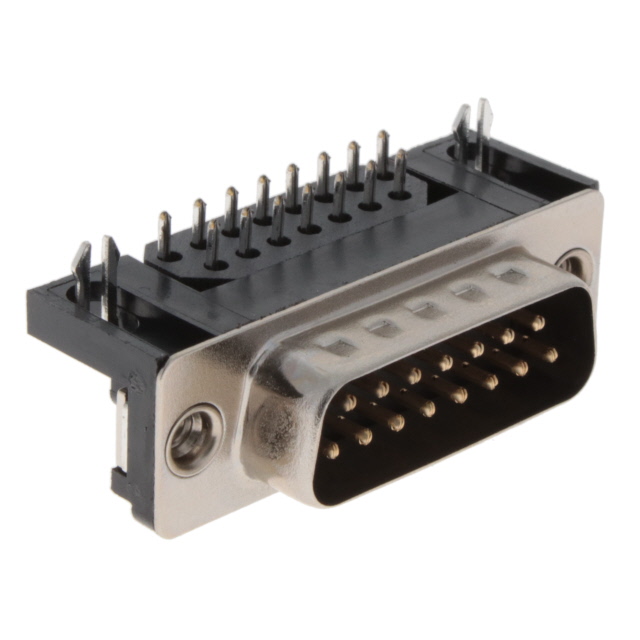

CONN D-SUB PLUG 15POS R/A SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
KF22X-A15P-N
ActiveKycon, Inc.
CONN D-SUB PLUG 15POS R/A SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KF22X-A15P-N |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 2 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents, Board Lock |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Termination | Solder |
| Voltage Rating | 30 VDC |
KF22X Series
| Part | Number of Rows | Connector Style | Flange Feature | Shell Material, Finish | Dielectric Material | Backset Spacing | Backset Spacing | Features | Mounting Type | Contact Form | Material Flammability Rating | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Color | Shell Size, Connector Layout | Current Rating (Amps) | Termination | Voltage Rating | Connector Type | Number of Positions | Contact Finish Thickness | Contact Type | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Kycon, Inc. | 2 | D-Sub | Housing/Shell (4-40) | Nickel Plated Steel | Polybutylene Terephthalate (PBT) Glass Filled | 8.08 mm | 0.318 " | Board Lock Grounding Indents | Through Hole Right Angle | Stamped | UL94 V-0 | Brass | 105 ░C | -55 °C | Gold | Black | 2 | 2 A | Solder | 30 VDC | Male Pins Plug | 15 | Flash | Signal | |
Kycon, Inc. | 2 | D-Sub | Female Screwlock (4-40) Mating Side | Nickel Plated Steel | Polybutylene Terephthalate (PBT) Glass Filled | 8.08 mm | 0.318 " | Board Lock Grounding Indents | Through Hole Right Angle | Stamped | UL94 V-0 | Brass | 105 ░C | -55 °C | Gold | Black | 2 | 2 A | Solder | 30 VDC | Male Pins Plug | 15 | Flash | Signal | |
Kycon, Inc. | 2 | D-Sub | Female Screwlock (4-40) Mating Side | Nickel Plated Steel | Polybutylene Terephthalate (PBT) Glass Filled | 8.08 mm | 0.318 " | Through Hole Right Angle | Stamped | UL94 V-0 | Phosphor Bronze | 105 ░C | -55 °C | Gold | Black | 2 A | Solder | 30 VDC | Receptacle Female Sockets | 37 | Flash | Signal | 4 (DC C) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.62 | |
| 10 | $ 5.63 | |||
| 35 | $ 5.15 | |||
| 70 | $ 4.90 | |||
| 105 | $ 4.77 | |||
| 280 | $ 4.45 | |||
| 525 | $ 4.25 | |||
| 1015 | $ 4.06 | |||
| 2520 | $ 3.81 | |||
Description
General part information
KF22X Series
15 Position D-Sub Plug, Male Pins Connector
