TS391SN2T1G
ActiveON Semiconductor
COMPARATOR, LOW POWER, SINGLE VOLTAGE/ REEL
Deep-Dive with AI
Search across all available documentation for this part.
TS391SN2T1G
ActiveON Semiconductor
COMPARATOR, LOW POWER, SINGLE VOLTAGE/ REEL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TS391SN2T1G |
|---|---|
| Current - Input Bias (Max) [Max] | 0.25 µA |
| Current - Output (Typ) | 20 mA |
| Current - Quiescent (Max) [Max] | 1.25 mA |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

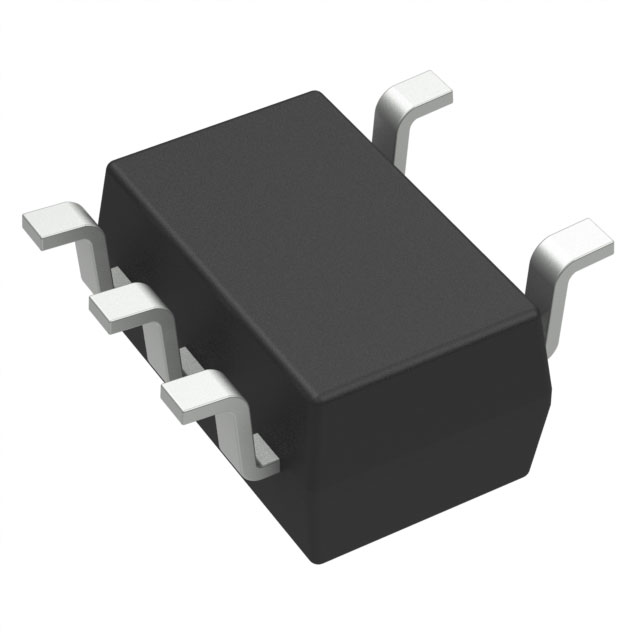

| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Propagation Delay (Max) [Max] | 850 ns |
| Supplier Device Package | 5-TSOP |
| Type | General Purpose |
| Voltage - Input Offset (Max) | 5 mV |
| Voltage - Supply, Single/Dual (±) [Max] | 36 V, 18 V |
| Voltage - Supply, Single/Dual (±) [Min] | 2 V, 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.66 | |
| 10 | $ 0.56 | |||
| 25 | $ 0.53 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.33 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.23 | |||
| Digi-Reel® | 1 | $ 0.66 | ||
| 10 | $ 0.56 | |||
| 25 | $ 0.53 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.33 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.23 | |||
| Tape & Reel (TR) | 3000 | $ 0.22 | ||
| 6000 | $ 0.20 | |||
| 15000 | $ 0.19 | |||
| 30000 | $ 0.19 | |||
| Newark | Each (Supplied on Full Reel) | 3000 | $ 0.25 | |
| 6000 | $ 0.23 | |||
| 12000 | $ 0.22 | |||
| 18000 | $ 0.20 | |||
| 30000 | $ 0.19 | |||
| ON Semiconductor | N/A | 1 | $ 0.20 | |
Description
General part information
TS391 Series
This device consists of a low-power voltage comparator designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. This comparator also has a unique characteristic in that the input common-mode voltage range includes ground, even though operated from a single power supply voltage.
