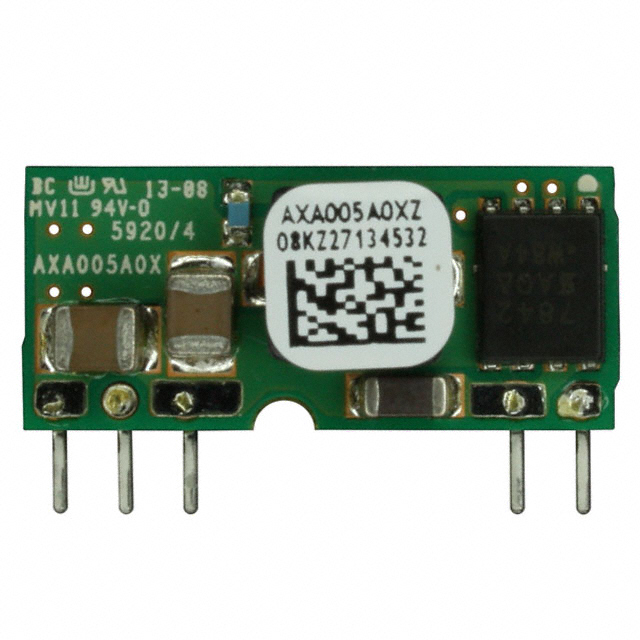

AXA005A0XZ
ActiveOmniOn Power™
DC DC CONVERTER 0.8-5.5V 27W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AXA005A0XZ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 5 A |
| Efficiency | 89 % |
| Features | Remote On/Off, UVLO, OCP, OTP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-SIP Module |
| Power (Watts) | 27 W |
| Size / Dimension [x] | 22.9 mm |
| Size / Dimension [x] | 0.9 " |
| Size / Dimension [y] | 0.26 " |
| Size / Dimension [y] | 6.6 mm |
| Size / Dimension [z] | 10.2 mm |
| Size / Dimension [z] | 0.4 " |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 10 VDC |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.42 | |
| 5 | $ 11.33 | |||
| 10 | $ 11.24 | |||
| 25 | $ 11.07 | |||
| 50 | $ 10.72 | |||
| 100 | $ 9.69 | |||
| 250 | $ 9.51 | |||
| 500 | $ 9.34 | |||
Description
General part information
AXA005 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 5.5V 5A 10V - 14V Input
